NUT SPLITTER

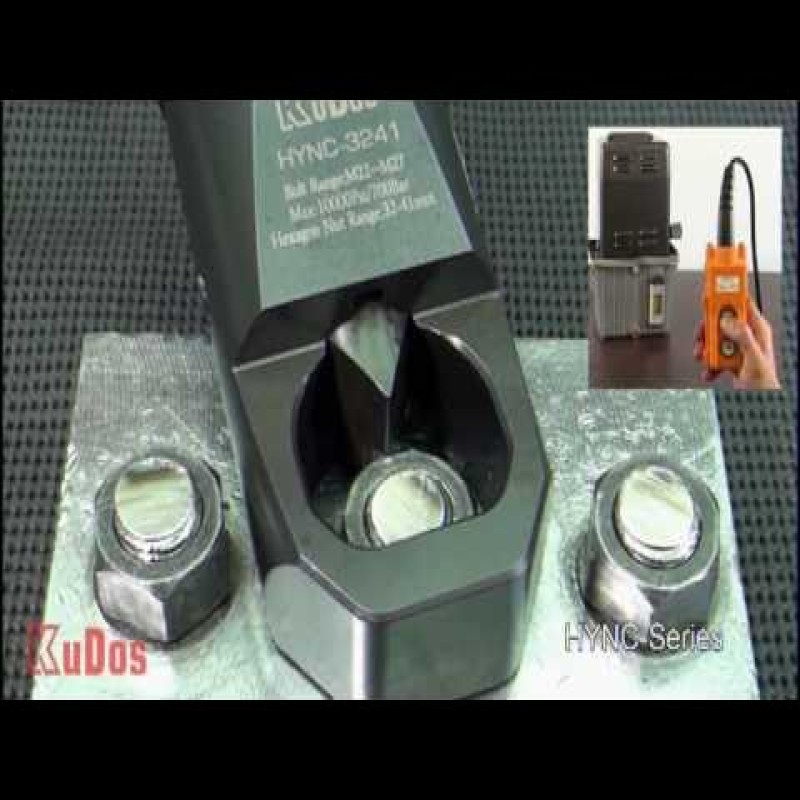

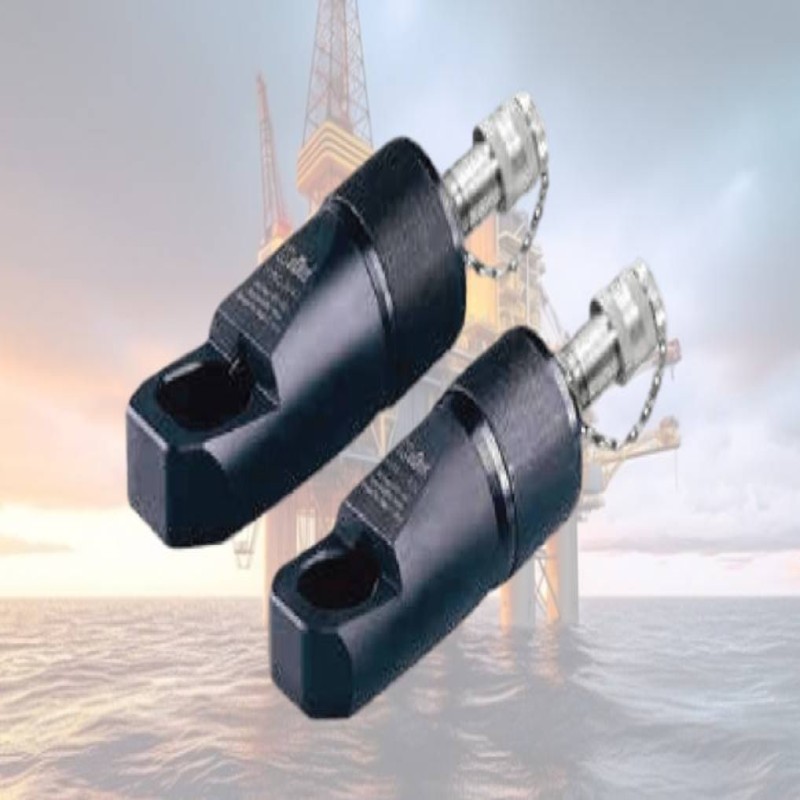

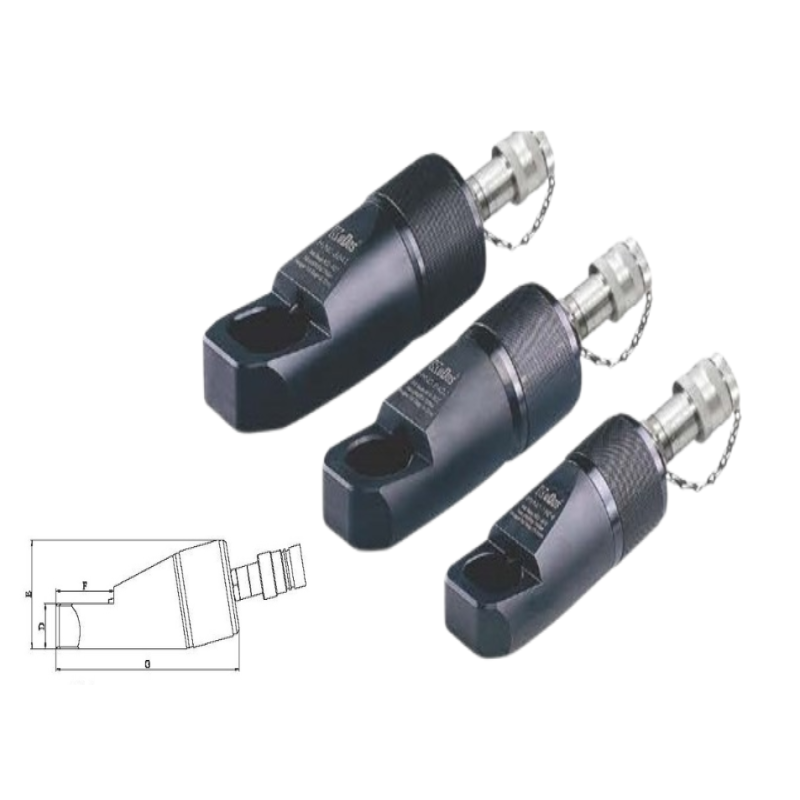

KuDos® Hydraulic Nut Splitter
เครื่องตัดน๊อตไฮดรอลิค
HYNC Series - Split Nuts, Save Time, Protect Bolts
- Capacity: ~6-102 tons depending on model
- Bolt range: M6-M48 across seven models
- Hex nut range: 10-75 mm across flats
- Maximum pressure: 700 bar (10,000 psi)
- Single‑acting cylinder with spring return
- Angled head to access to nuts in confined positions
- Regrindable chisels for extended service life
- Operates with 700 bar single-acting hydraulic pump
- Splits nuts cleanly without damaging bolts
- Multiple models for diverse industrial applications
- Robust construction with replaceable chisels
- Compact design with protective carry cases
- Certified quality, Made in U.S.A.
- Warranty & insurance included
| MODEL | Bolt range | Hex. nut range (mm) |
Capacity (Ton) |
| HYNC-1319 | M6-M12 | 10-19 | 6.23 t |
| HYNC-1924 | M12-M16 | 19-24 | 11.24 t |
| HYNC-2432 | M16-M22 | 24-32 | 18.39 t |
| HYNC-3241 | M22-M27 | 32-41 | 25.69 t |
| HYNC-4150 | M27-M33 | 41-50 | 38.92 t |
| HYNC-5060 | M33-M39 | 50-60 | 54.88 t |
| HYNC-6075 | M39-M48 | 60-75 | 102.76 t |
