Battery Operated Hydraulic Crimper
"Portable Power, Perfect Connections"

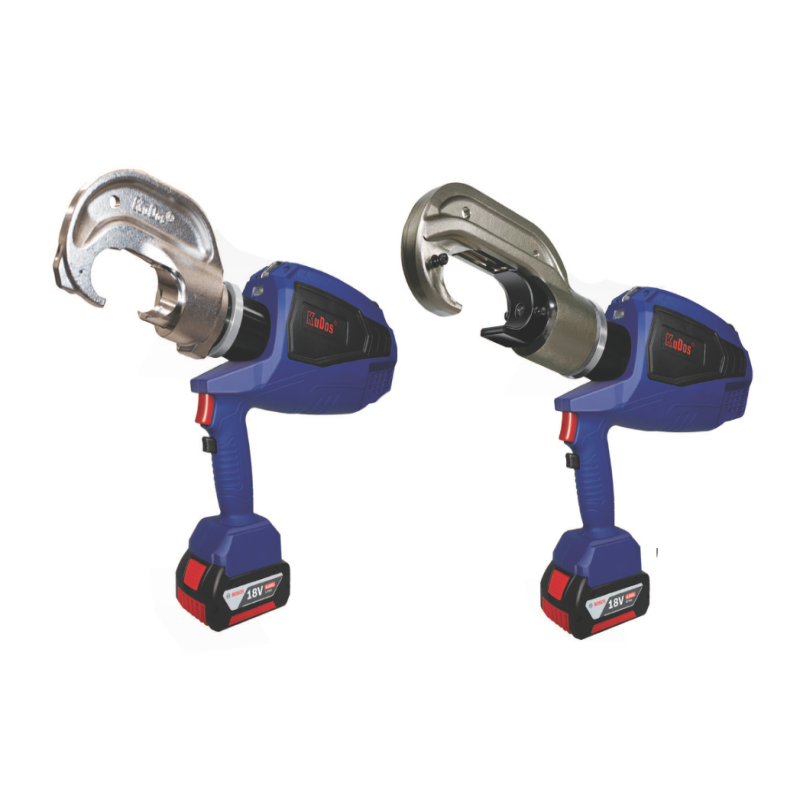

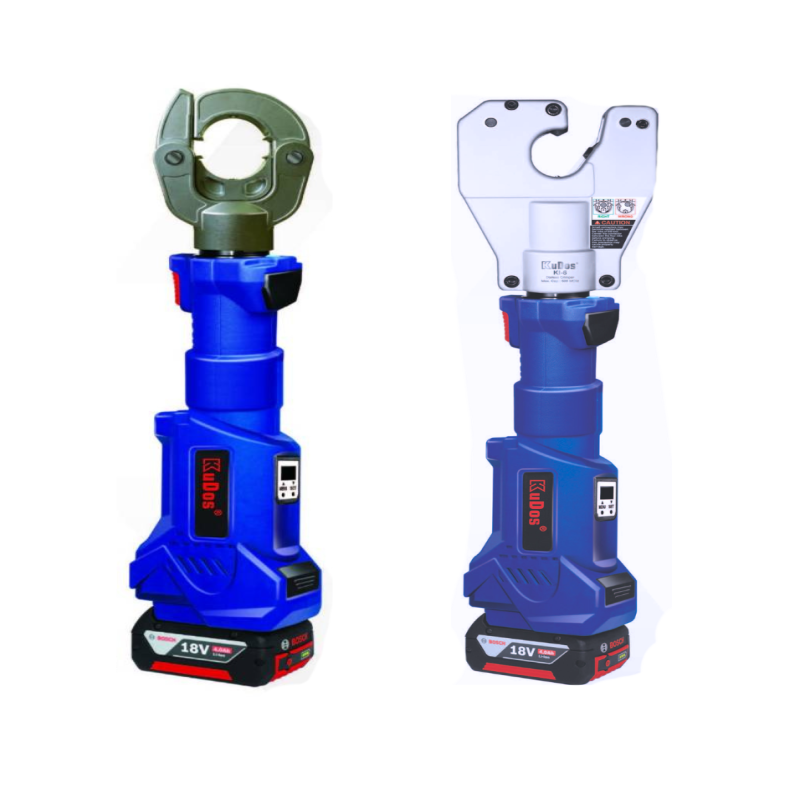

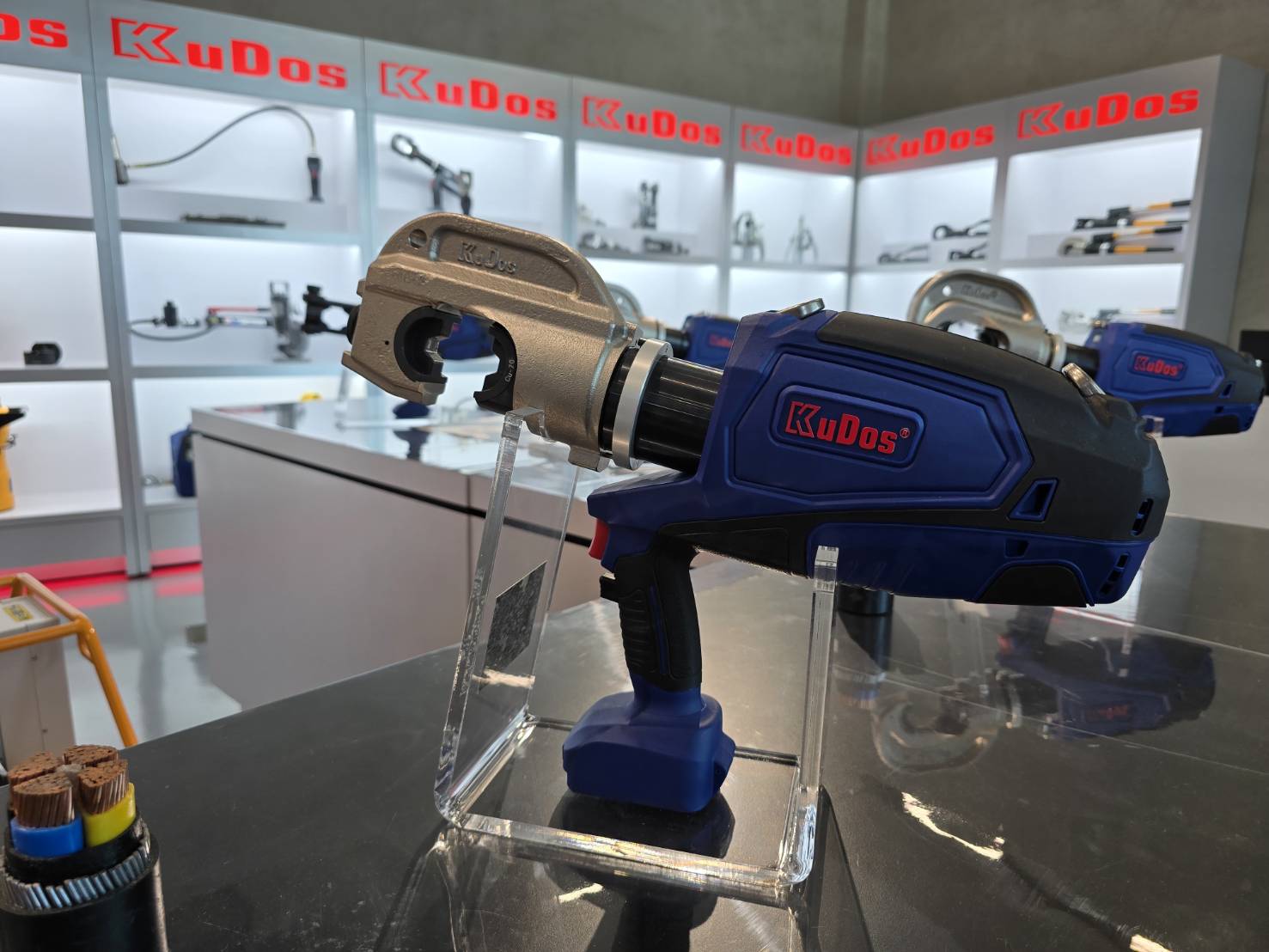

Model KA-44 - Compact strength for precision crimps
- Length: 446 mm | Weight: 7.3 kg (w/o battery)
- Drive Unit: 18V DC motor
- Charger Input: 110V/230V AC, 50–60 Hz
- Reservoir Capacity: 175 cc
- Jaw Opening: 44 mm
- Max Pressure: 700 bar
- Crimping Force: 14.01 tons (124.6 kN)
- Application: Up to 400 mm² CU conductors
- Dies: CU-16 to CU-400 (sold separately), compatible with Alcoa, Burndy, T&B, Klauke, Cembre, Blackburn 12-ton U-type dies
- Battery-operated portability with 18V Li-ion power
- 345° rotatable head for flexible operation
- LED illumination for low-light environments
- Ergonomic, skid-proof grip for operator comfort
- Low-voltage and overload prevention
- Wide compatibility with industry-standard dies
- Portable design for workshop and on-site use
- Enhances safety and efficiency in electrical projects

Model KA-15T - Heavy-duty power for maximum capacity
- Length: 506 mm | Weight: 8.3 kg (w/o battery)
- Drive Unit: 18V DC motor
- Charger Input: 110V / 230V AC, 50–60 Hz
- Reservoir Capacity: 175 cc
- Jaw Opening:50 mm (45 mm w/ ADP-15THE adapter)
- Max Pressure: 700 bar
- Crimping Force: 15.2 tons (134.7 kN)
- Application: Up to 630 mm² CU conductors
- Dies: 15THE-CU400 / 500 / 630 (sold separately), accepts 12-ton U-type dies with adapter
- Battery-operated portability with 18V Li-ion power
- 345° rotatable head for flexible operation
- LED illumination for low-light environments
- Ergonomic, skid-proof grip for operator comfort
- Low-voltage and overload prevention
- Adapter compatibility for wider die range
- Higher force & larger jaw opening for heavy-duty jobs
- Wide compatibility with die sets increases versatility
- Professional-grade crimps with minimal effort

Battery Operated Hydraulic Crimper
"Portable Power, Perfect Connections"

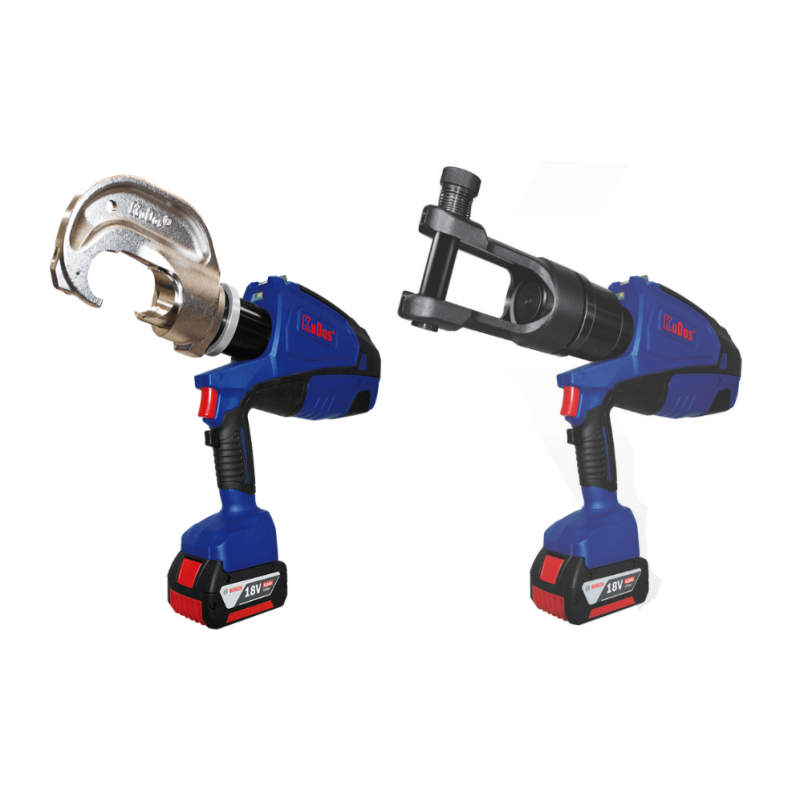

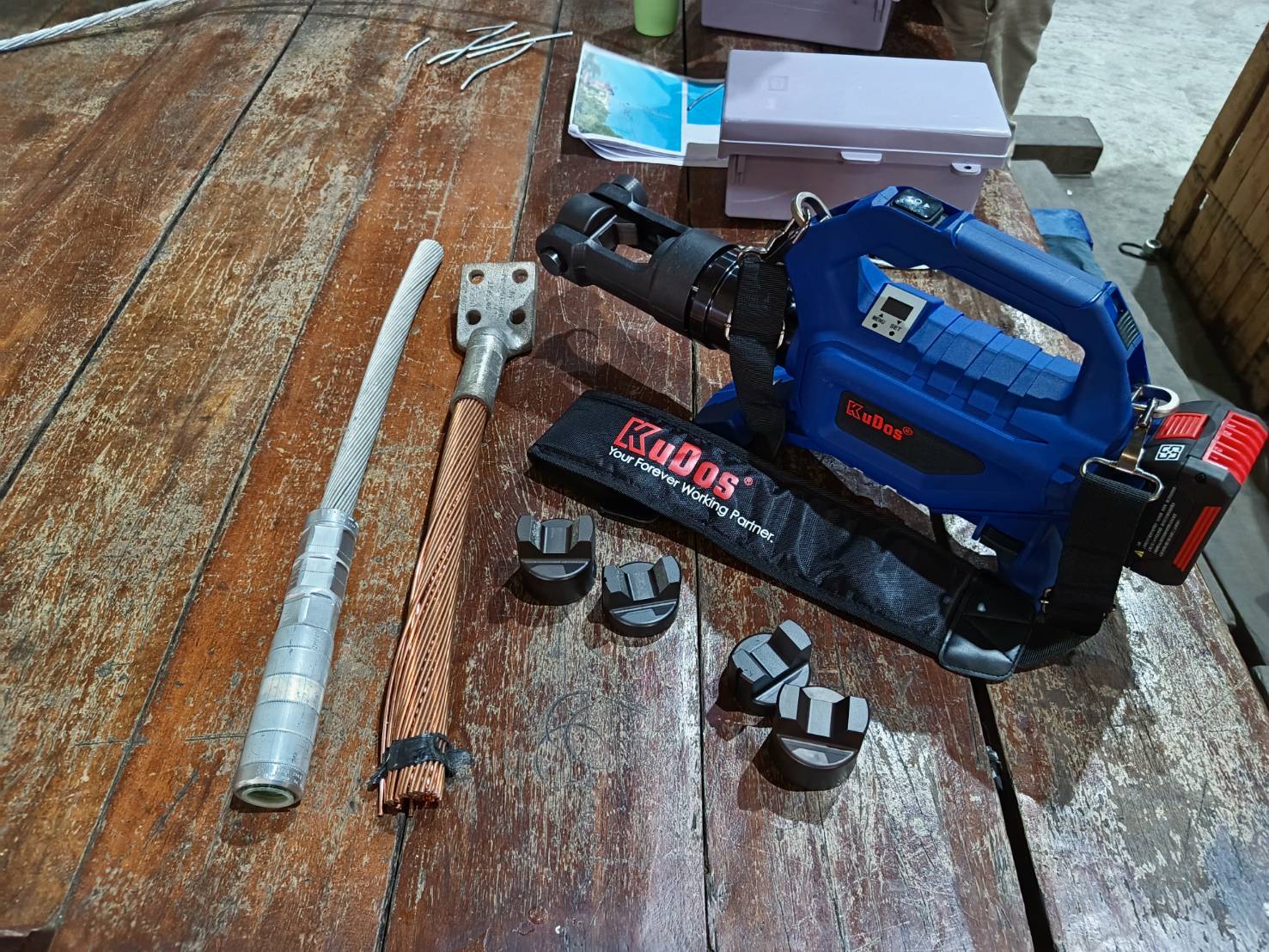

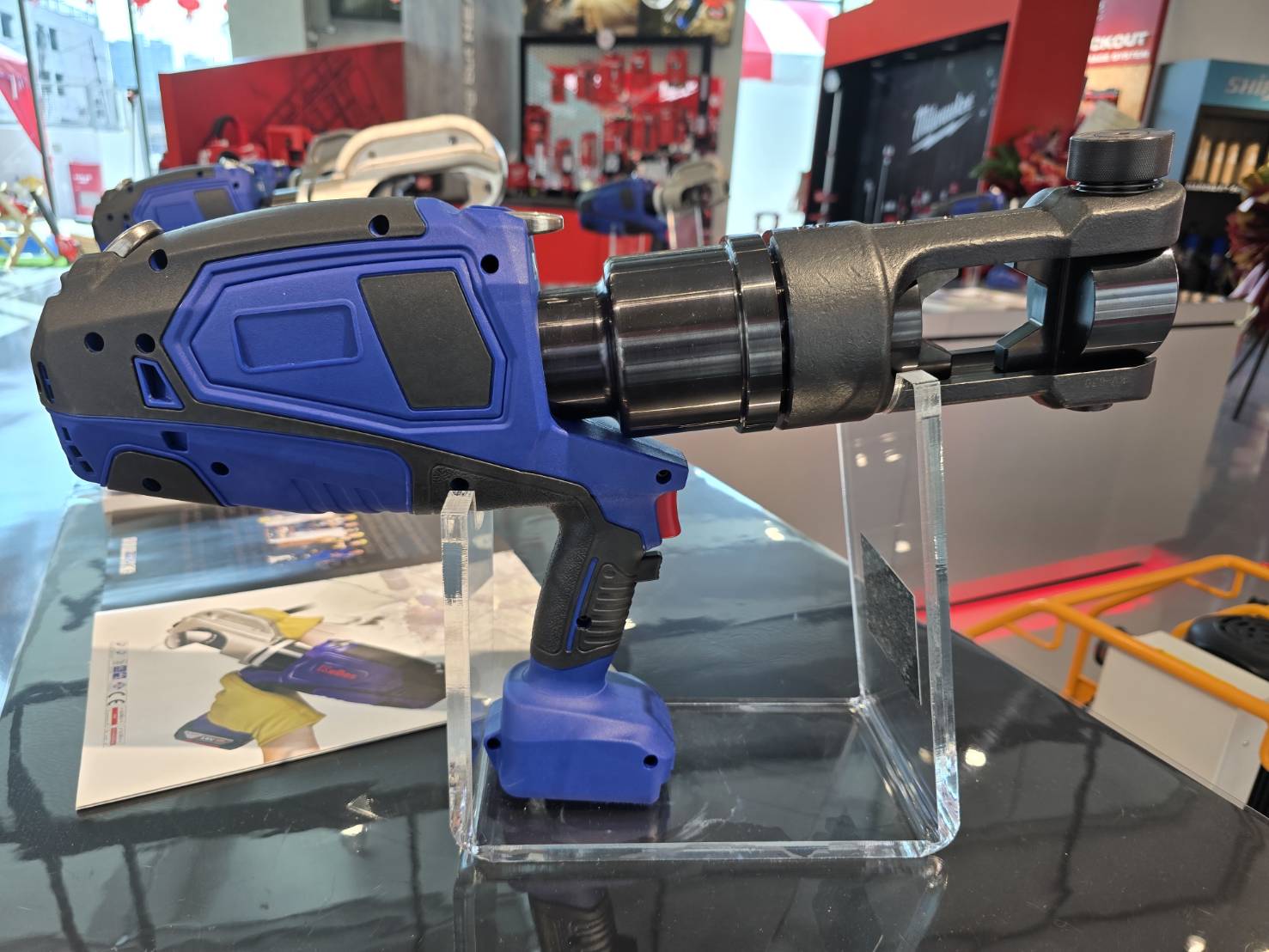

Model KP-630 - Maximum capacity, portable precision
- Length: ~510 mm | Weight: ~8.5 kg (w/o battery)
- Drive Unit: 18V DC motor
- Charger Input: 110V / 230V AC, 50–60 Hz
- Reservoir Capacity: 175 cc
- Jaw Opening: 50 mm | Max Pressure: 700 bar
- Crimping Force: 24.9 tons / 221 kN
- Application: Copper conductors up to 630 mm²
- Dies: Compatible with 12-ton U-type dies and KUDOS-specific crimping dies
- Battery-operated portability with 18V Li-ion power
- 345° rotatable head for operation in tight spaces
- LED illumination for low-light environments
- Ergonomic, skid-proof grip for operator comfort
- Low-voltage and overload prevention
- Wide compatibility with industry-standard dies
- High crimping force for conductors up to 630 mm²
- Portable for workshop and on-site use
- Combining portability with high force capacity

Batter Operated Hydraulic Crimper
"Portable Power, Perfect Connections"

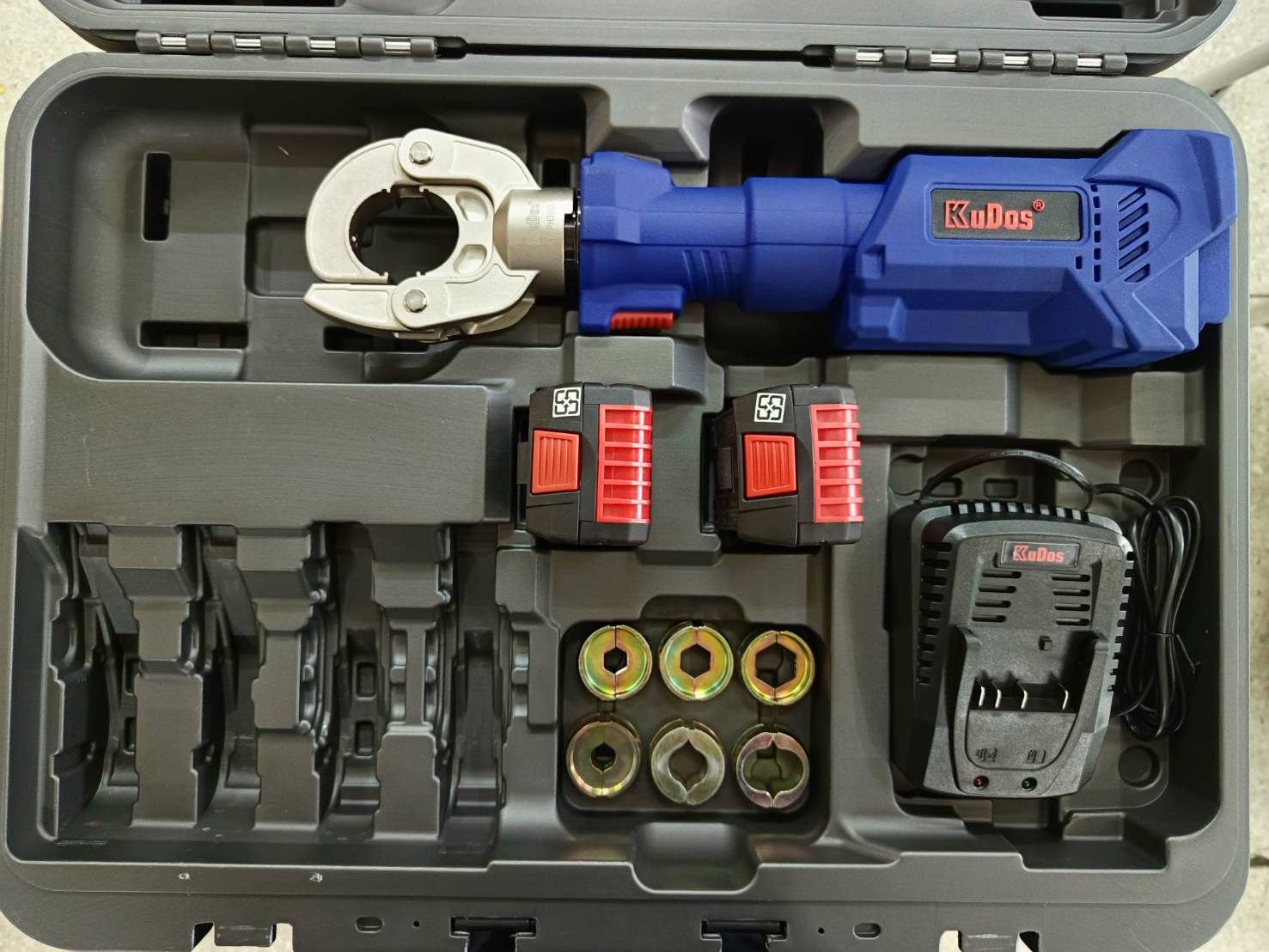

Model KI-PH300 - Portable precision for mid-range power
- 6-ton battery-operated crimping tool
- Maximum Crimping Force: 6.90 tons / 61.4 kN
- Max Pressure: 550 bar
- Crimping: Max 300 mm² copper/aluminum lugs
- Weight: 3.0 kg (without battery)
- Length: 359 mm
- Die Compatibility: Accepts all 6-ton dies used by Alcoa, Burndy, T&B, Klauke, Cembre, and Blackburn
- Battery: 18V DC Motor
- Portable battery-powered operation
- 345° rotatable head for flexible positioning
- LED work light for low-light environments
- Ergonomic grip with anti-slip design
- Overload and low-voltage prevention

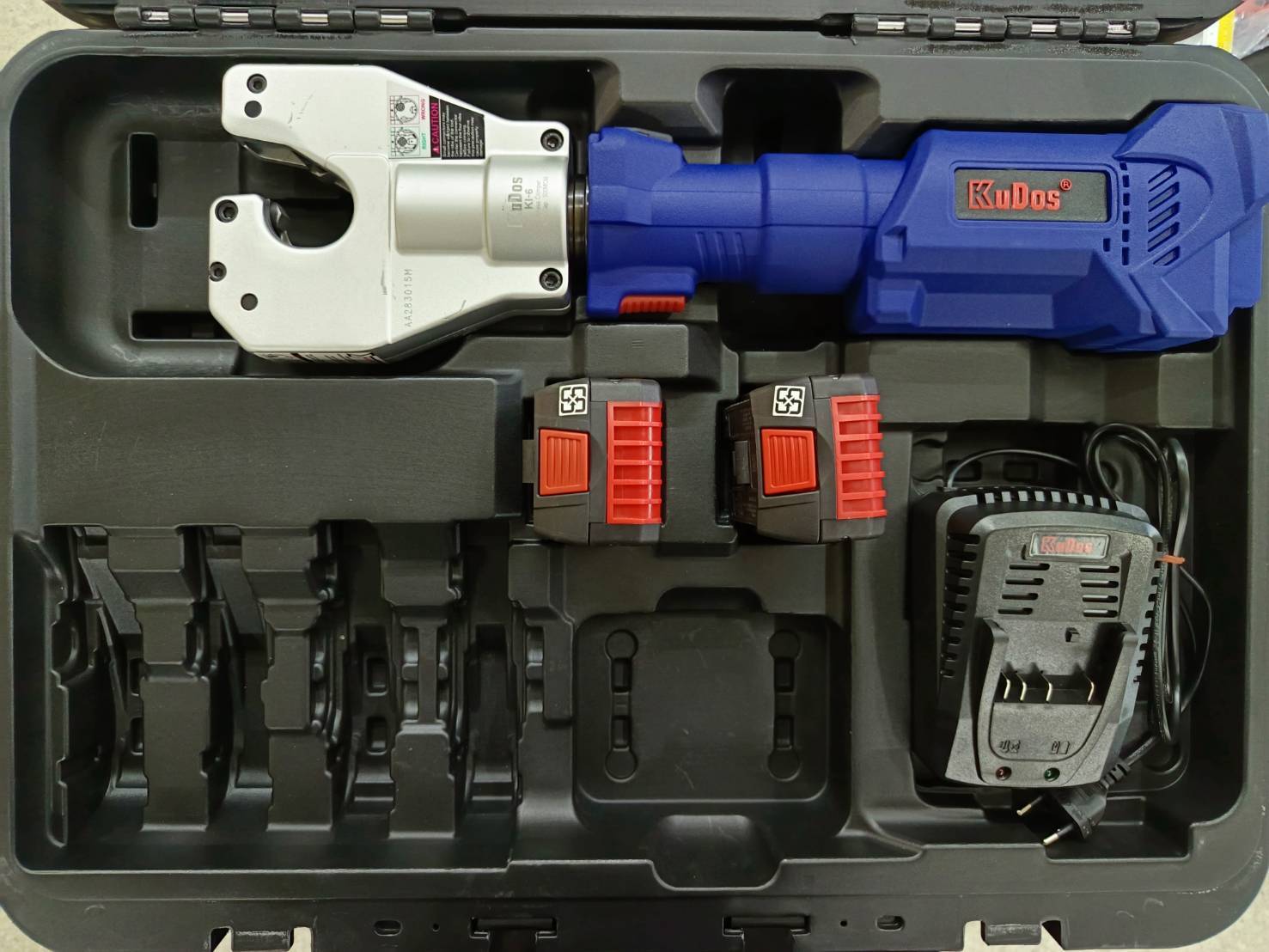

Model KI-6 - Compact crimping made effortless
- 7-ton hydraulic battery tool
- Maximum Crimping Force: 7.03 tons / 62.5 kN
- Max Pressure: 700 bar
- Jaw Opening: 36 mm
- Application: Dieless compression to crimp Anderson style connectors up to 500 MCM
- Weight: 5.5 kg (without battery)
- Head: 360° rotating head
- Ideal for small-scale electrical installations
- Extremely portable and easy to use
- Consistent crimps for small connectors

Model KI-IL - Industrial strength, portable precision
- 6-ton hydraulic battery tool
- Multiple operations via interchangeable heads
- Maximum Crimping Force: 6.0 tons / 53.38 kN
- Max Pressure: 700 bar
- Weight: 3.0 kg
- Portable with interchangeable head capabilities
- Battery-powered portability with high force output
- Rotatable head for flexible operation
- LED illumination for dark environments

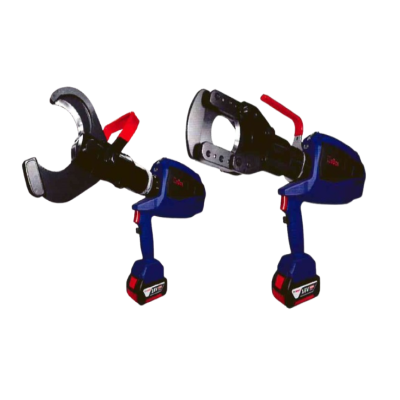

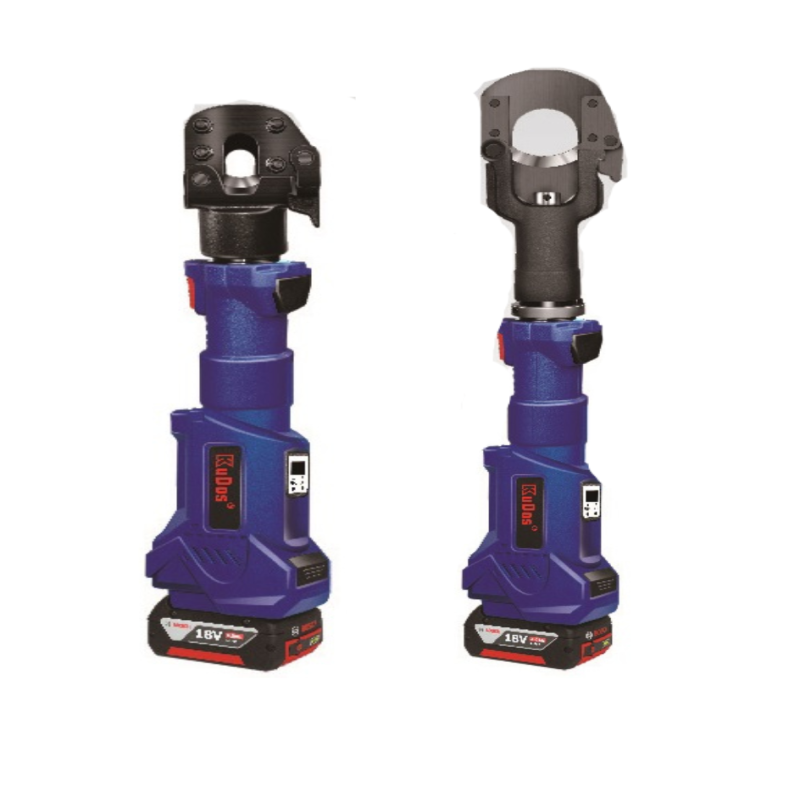

Battery Operated Hydraulic Cutter
“Compact strength, maximum impact”

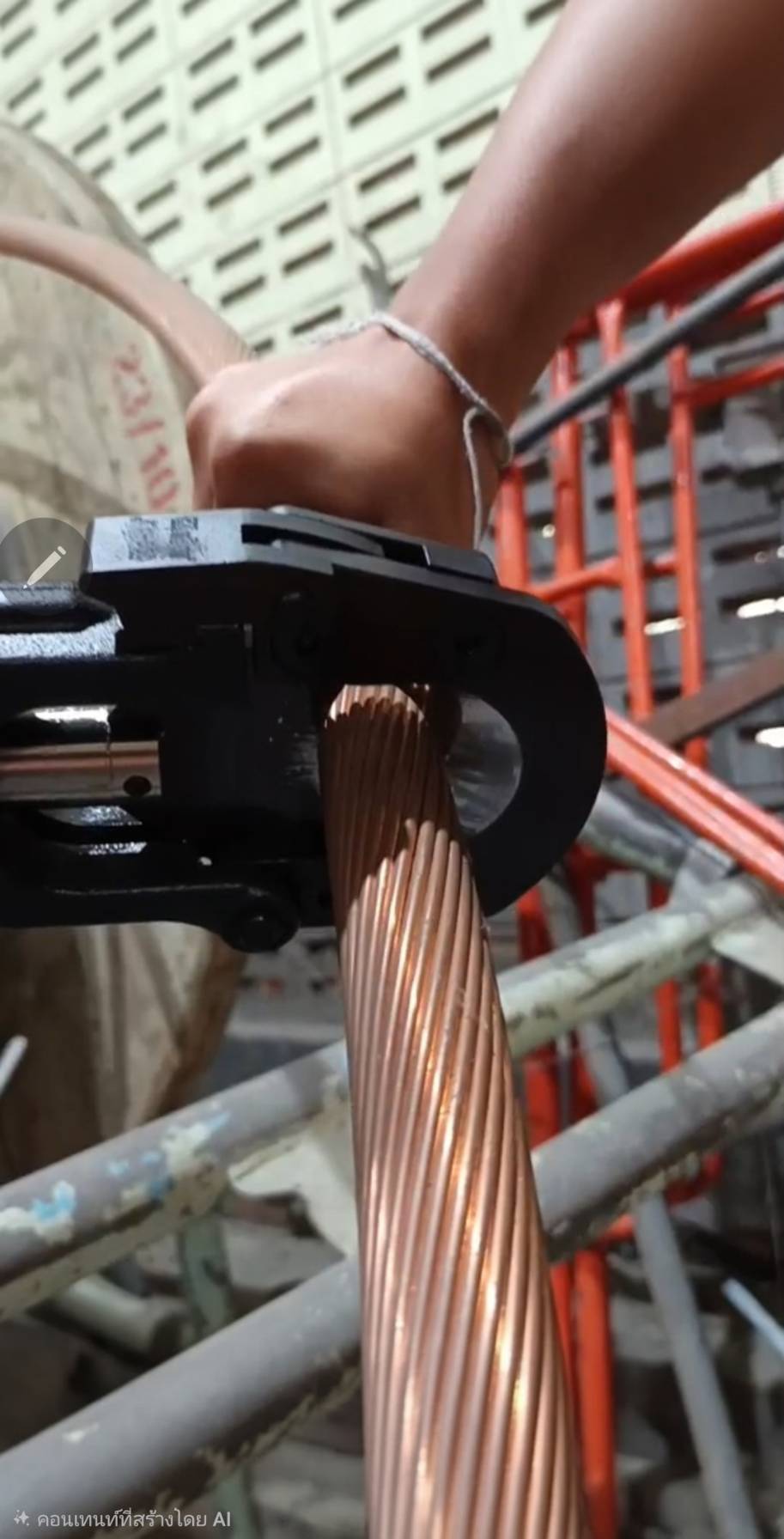

Model KI-050 - Cut through 50 mm cables with ease
- Drive Unit: 18V DC motor
- Max Pressure: 700 bar
- Max Output: 5.0 tons / 44.1 kN
- Cutting Capacity: 50 mm Ø Cu/Al/CCP cables
- Length: 469 mm | Weight: 4.0 kg (w/o battery)
- Guillotine-type cutting head for clean cuts
- Flip-top latch for easy cable insertion
- Spring return mechanism
- Replaceable blades
- High cutting force for medium to large cables
- Reliable 18V motor w/ consistent performance
- Ergonomic design for field use
- Professional-grade cuts with minimal finishing

Model KI-S24 - Effortless cuts up to 24 mm
- Drive Unit: 18V DC motor
- Max Pressure: 700 bar
- Max Output: 8.78 tons / 78.1 kN
- Cutting Capacity:
* Wire rope (up to 24 mm)
* Cu/Al strands up to 24 mm
* ACSR up to 24 mm, soft steel bar up to 20 mm
- Length 328 mm | Weight: 5.4 kg (w/o battery)
- High cutting force relative to size
- For wire rope, reinforcing rods & ACSR cables
- Versatile cutting across multiple materials
- Portable and easy to handle in tight spaces
- Ideal for utility and construction work
- Enhances safety by eliminating manual sawing

Battery Operated Hydraulic Crimping Tool
"Portable Power, Perfect Connections”

Model KV-44 - Compact strength for precision crimps
- Crimping Force: 14.01 tons / 124.6 kN
- Main Application: Up to 400 mm² CU (copper)
- Jaw Opening: 44 mm
- Weight: 7.3 kg (w/o battery) | Length: 446 mm
- Max Pressure: 700 bar
- Dies: Accepts all 12-ton U-type dies
  (Alcoa, Burndy, T&B, Klauke, Cembre, Blackburn)
- 180° rotating head for flexibility
- Two-stage hydraulic system
- Automatic low/high-pressure conversion
- Relief valve for overload protection

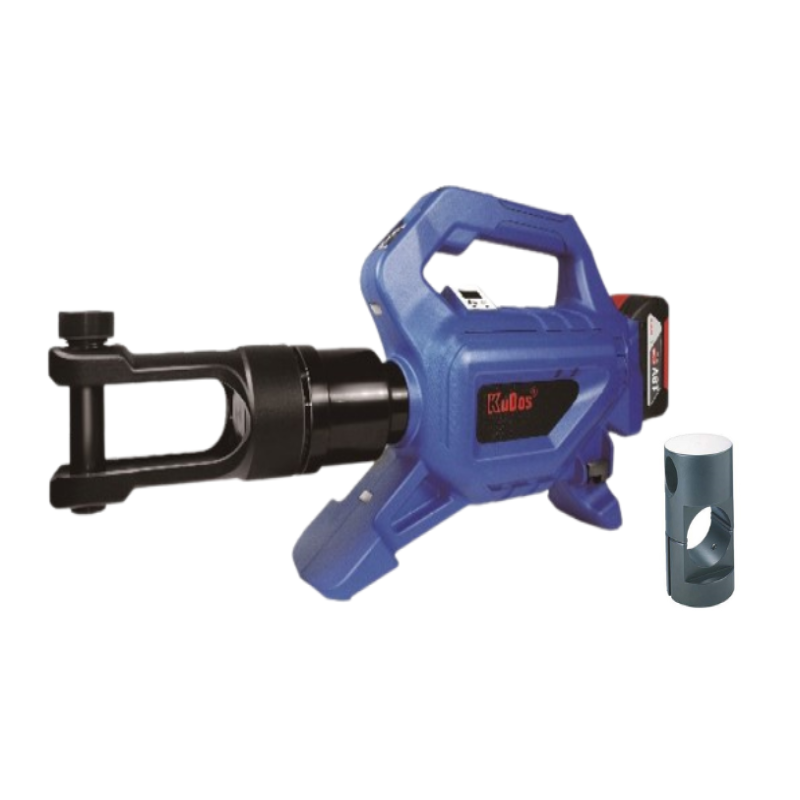

Model KV-630 - Heavy-duty force for maximum capacity
- U-type head crimper for larger cable sizes
- Crimping Force: 24.9 tons / 221 kN
- Max Crimp Capacity: Up to 630 mm²
- Weight: 8.8 kg (w/o battery) | Length: 489 mm
- Max Pressure: 700 bar
- Compatible with ADP-630HE adaptor for 12-ton dies (16-400 mm²)
- Single-action cylinder with spring return
- Locking pin for firm die holding

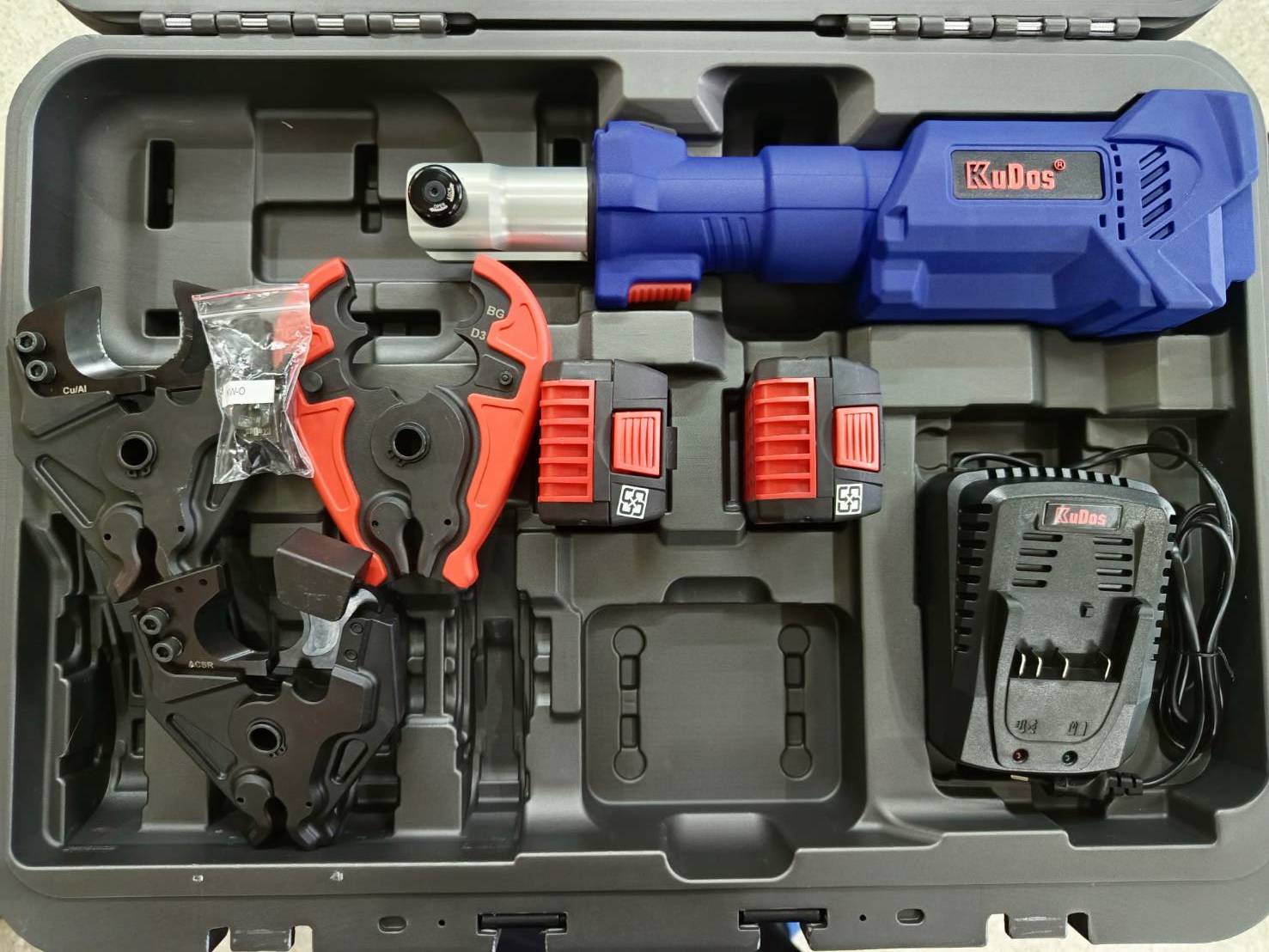

Model KV-45X - One tool, endless possibilities
- A tool to be used with interchangeable heads
- Drive Unit: 18V DC Motor
- Max Pressure: 700 bar
- Max Output: 14.01 tons / 124.6 kN
- Ram Stroke: 44 mm
- Weight: 4.7 kg (w/o battery and head)
- Versatility across crimping, cutting, spreading
- Interchangeable Heads (Sold Separately):
* Crimping (CP-27/DL-400MX): Up to 400 mm² CU
* Cutting (SC-45/65YC): 45 mm or 60 mm CU/AL cable
* Punching (44AT-50AP): Panel punching
* Spreading (SW150): 5-150 mm range

Battery Operated Crimping Tool
"Portable Power, Perfect Connections"

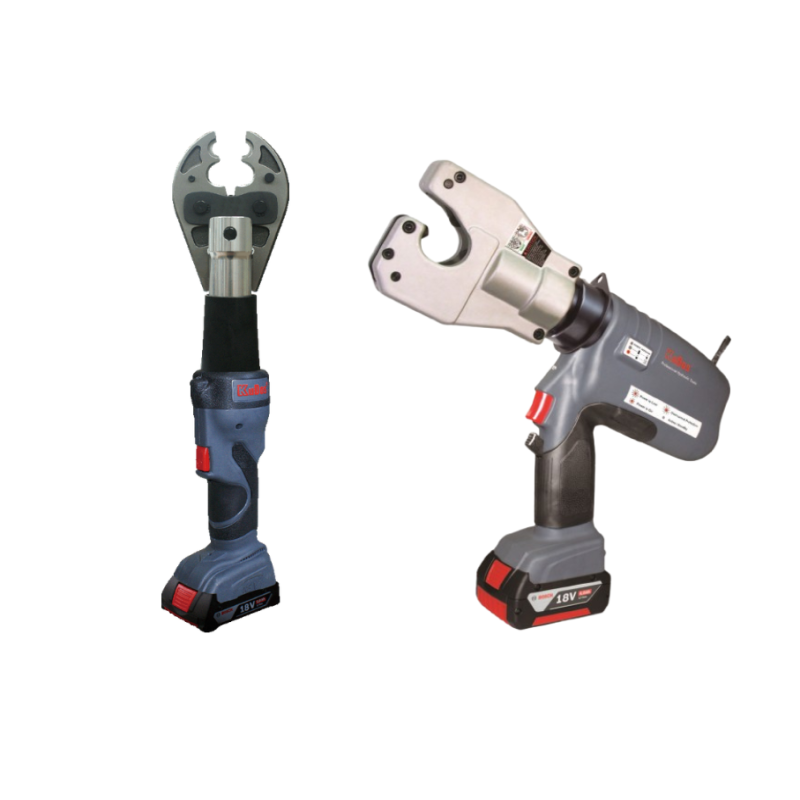

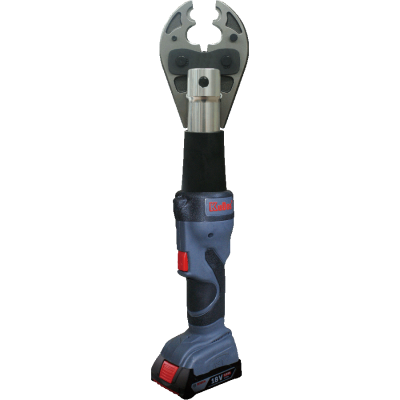

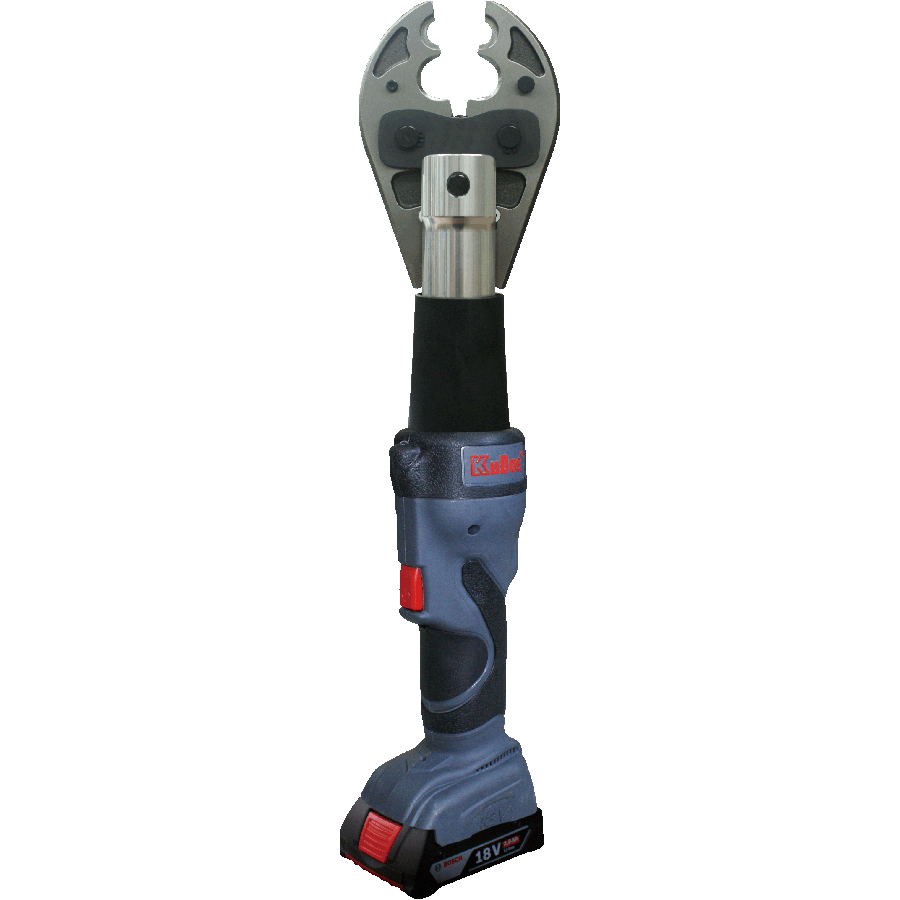

Model K-BGD3 - Compact strength, reliable precision
- Utility-style tool; "D3" groove for Type W die inserts
- Crimping Force: 4.5 tons (approx.)
- Capacity: Connectors from #10 sol to 2/0 str copper
- Butting steel jaws for proper crimp
- Length: 459 mm | Fiber glass handles
- Portable battery-powered hydraulic crimping
- Ergonomic grip with anti-slip design
- Compact and portable for on-site use
- Strong crimping for mid-to-large conductor sizes

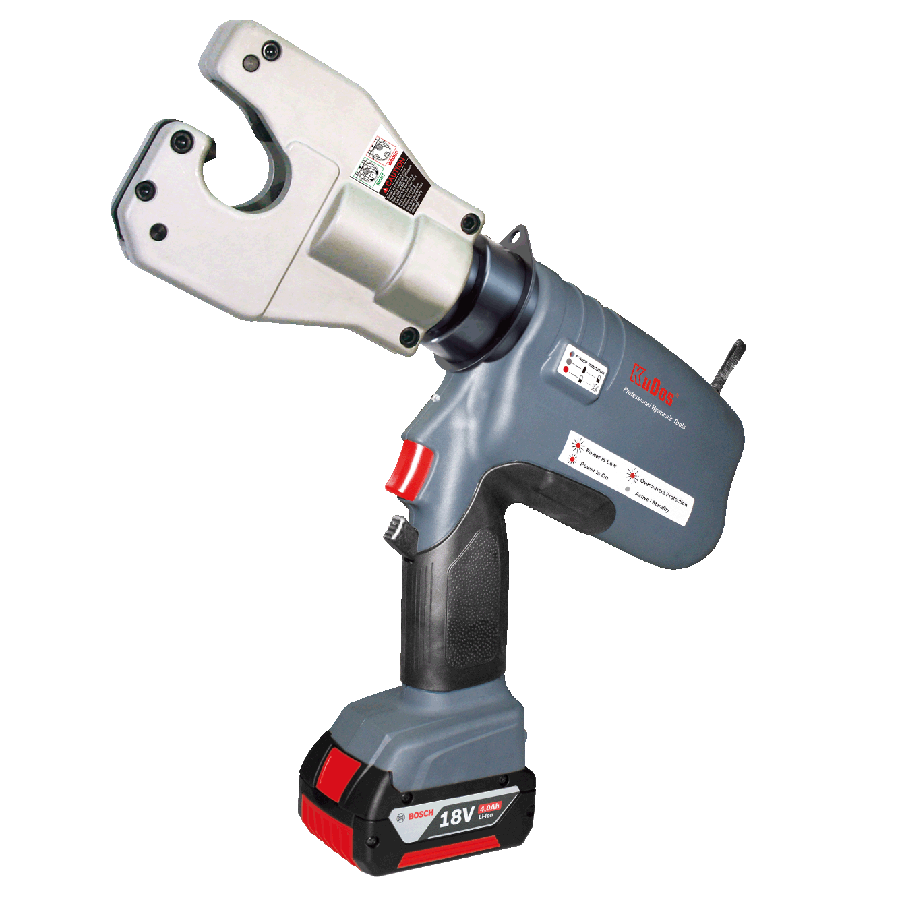

Model LEC-6 - Lightweight speed, effortless crimps
- Crimping Force: 7.03 tons / 62.5 kN
- 18V DC motor (some models listed as 14.4V, 2.6Ah)
- 360°  rotating head | 29 mm jaw opening.
- Weight: 5.5 kg (without battery)
- Ideal for small-scale crimping tasks
- Highly portable and easy to maneuver
- Efficient for workshop and field use
- Application: Dieless compression for Anderson style connectors up to 500 MCM or 25-240 mm²

Model LEC-15T - Heavy-duty force, portable efficiency
- Crimping Force: 15.2 t/134.7kN or 15.57 t/138.5kN
- Drive Unit: 18V DC Motor
- Jaw Opening: 50 mm
- Max crimping capacity up to 630 mm² (with 15THE-CU630 die)
- High crimping force for large conductor sizes
- Portable and efficient for heavy-duty applications
- Reliable performance with consistent crimp
- Application: C-frame with open jaw, compatible with Burndy/12-ton U-type dies (15THE-CU series)

Battery Operated Gear Driven Cable Cutter
"Precision Cuts, Anywhere"

Model KCV-50 - Compact gear force, clean cuts
- Battery operated gear driven cable cutter
- Cutting Capacity: Max. Ø 50 mm (Nonferrous)
- Drive Unit: 18V DC motor
- Weight: 2.2 kg (w/o battery) | Height: 317 mm
- Application: For soft copper and aluminum cable
- Strong cutting force with gear-driven efficiency
- Compact and portable for on-site use
- Safety with ergonomic and protective features
- Long service life ensures cost efficiency

Model KCV-54 - Heavy-duty gear, unstoppable precision
- Battery operated gear driven cable cutter
- Cutting Capacity: Max. Ø 54 mm (Nonferrous and steel)
- Capacity: 400-pair telecom cable, ACSR up to 18mm
- Drive Unit: 18V DC motor
- Weight: 3.0 kg (w/o battery) | Height: 338 mm.
- Guillotine-type cutting to reduce jamming
- Extra-large cutting for heavy-duty applications
- Efficient for industrial-scale projects
