Adjustable Automatic Grease Lubricator
“Smart Lubrication, Longer Machine Life”

General Specifications (Both Models)
- Operating Temperature: -20°C to 125°C
- Suitable Grease: NLGI #0, #1, #2, #3
- Lubrication Type: Grease (GP series)
- Adapters: PT 1/4-19, PT 1/8-28 & 1/4-28UNF
- Adjustable flow, 2-layer spring, non-sparking
- Refillable: Designed for multiple uses
- Installable both vertically and horizontally
- Grease nipple cap prevents contaminants

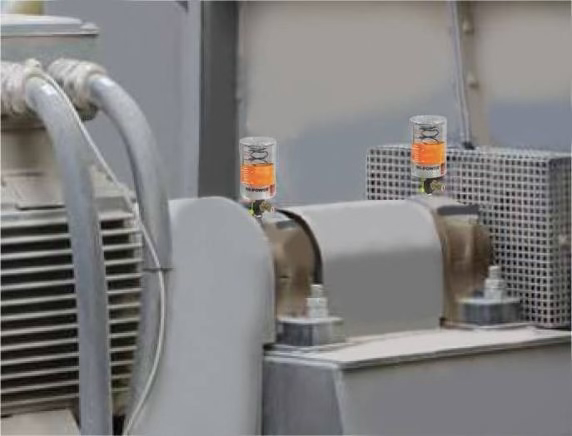

- For Linear guides, bearings, and motor shafts

Model GP-26C - Compact Power, Precise Grease Delivery
- Capacity: 58 g | Weight: ~0.2 kg
- Dimensions: 120 mm (H) x 55 mm Ø
- Discharge Rate: 0.03 g/hr

Model GP-36C - Extended Capacity, Reliable Lubrication
- Capacity: 125 g |  Weight: ~0.25 kg
- Dimensions: 134.5 mm (H) x 68 mm Ø
- Discharge Rate: 0.03 g/hr

Auto Oil Lubricator
“Automatic Care. Maximum Machine Life”

Model OP-26C - Compact Oil Power, Precise Delivery
- Adjustable automatic oil lubricator
- Designed for low-volume, continuous oil application
- Capacity: Approximately 95 cc
- Includes adapters (PT 1/4-19, PT 1/8-28, 1/4-28UNF)
- Refillable oil chamber with a transparent cover

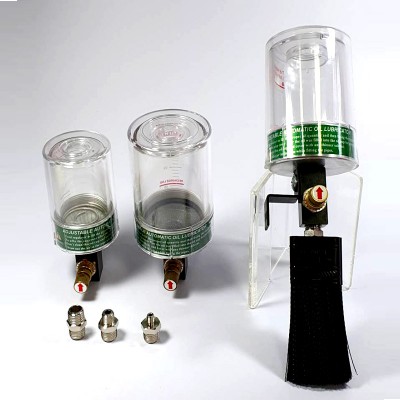

Model OP-36C - Extended Oil Capacity, Reliable Flow
- Larger capacity adjustable automatic oil lubricator
- Capacity: Approximately 178 cc
- Steady lubrication to bearings and linear guides
- Suitable for industrial machinery
- Features a volume adjuster for setting the flow rate

Model CP-36C - Brush‑On Precision, Effortless Lubrication
- Automatic oil lubricator with a brush nozzle
- Includes a brush for application w/o the standard adapters
- For applications requiring applying oil over a surface (e.g., chains, open gears) rather than a single point
