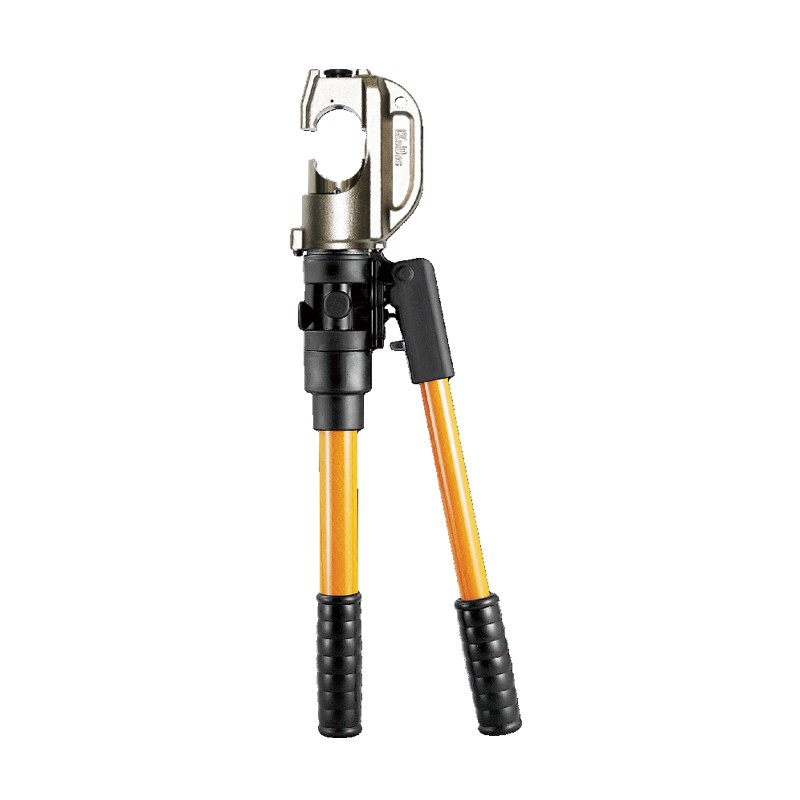

Hydraulic Crimping Tool
#HYCP185 - Medium-sized conductors, field work
#HYCP240R - Industrial jobs, angled access
#PH-300 - Large-scale installations, substations

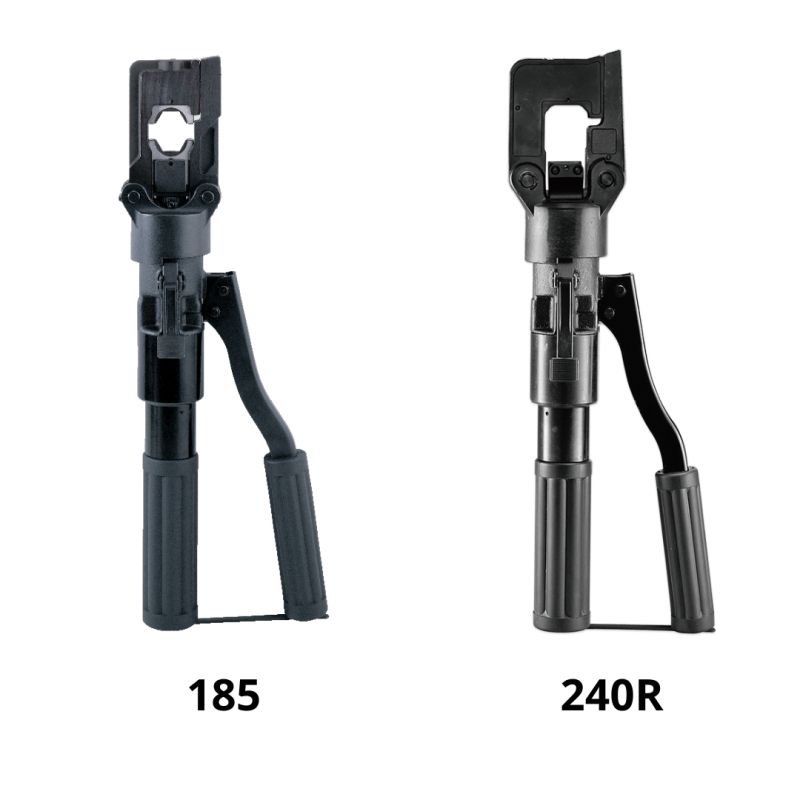

HYCP185 (DIN 46235 - 185 mm²)

- Hydraulic hand-operated crimping tool
- Crimping capacity: 185 mm² cable lugs
- High-stength steel jaws with changeable dies
- Compact and portable design
- Reliable crimping for medium-sized conductors
- Easy to use in confined spaces
- Durable construction for long service life
- Product warranty included

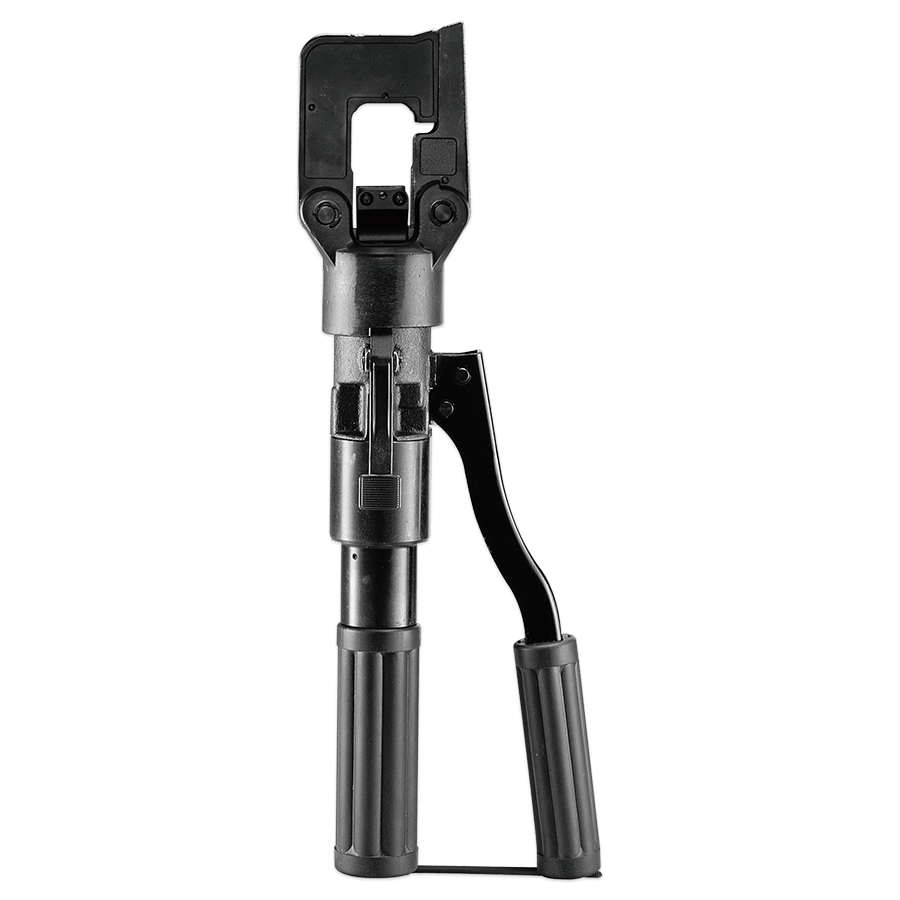

HYCP240R (DIN 46235 - 240 mm²)

- Hydraulic crimping tool with rotating head
- Crimping capacity: 240 mm² cable lugs
- 360° swivel head for access in tight spaces
- Heavy-duty hydraulic for consistent pressure
- Robust steel frame with replaceable dies
- Handles larger conductor sizes with ease
- Built for demanding industrial environments
- Product warranty included

PH-300 (Up to 300 mm² conductors)

- Hydraulic crimping tool for heavy-duty applications
- Crimping capacity: up to 300 mm² condutors
- High-force hydraulic for large lugs & connectors
- Rugged construction with reinforced handles
- Designed for industrial & utility electrical work
- Maximum capacity for large-scale installations
- Ideal for power plants and substations
- Product warranty included

Hydraulic Crimping Tool with Built-In Pump

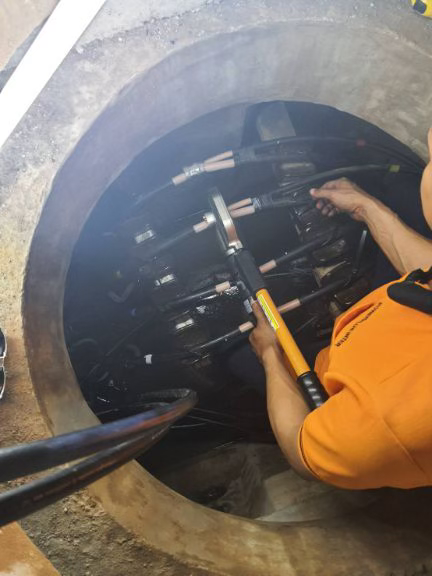

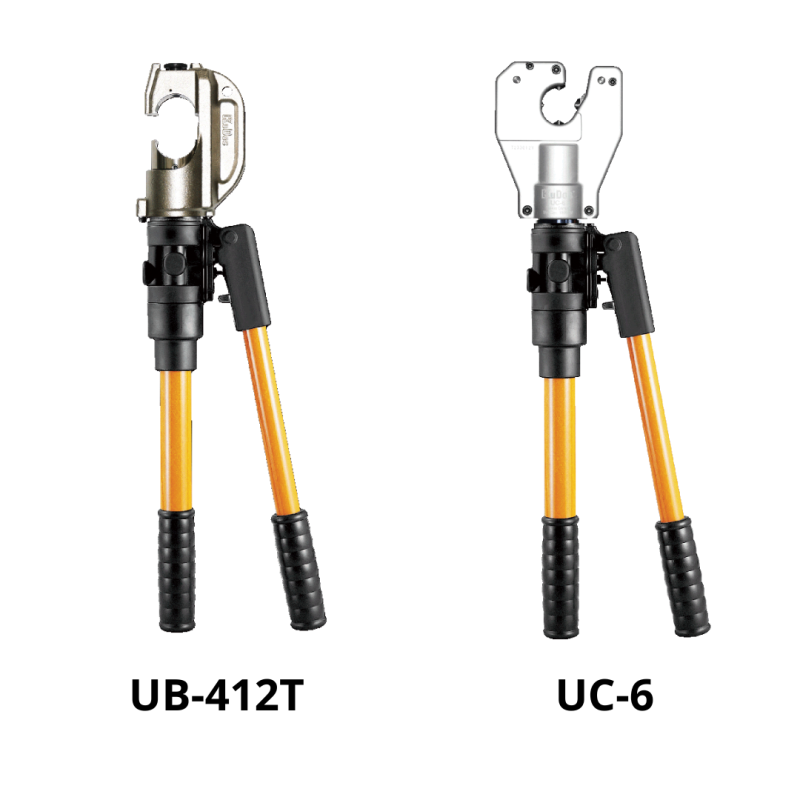

UB412T - Crimp Strong, Work Smart

- Length: 630 mm | Weight: 6.4 kg
- Maximum output: 12.87 tons (114.5 kN)
- Jaw opening: 32 mm
- Crimping capacity: up to 400 mm² copper lugs
- 180° rotating head & fiberglass handles
- Overload relief valve, 2-stage hydraulic system
- Ergonomic design reduces fatigue
- Versatile die compatibility
- Certified quality & product warranty included

HYCP4413T - Heavy Duty, High Precision

- Length: 641 mm | Weight: 7.6 kg
- Maximum output: 14.01 tons (124.6 kN)
- Jaw opening: 44 mm
- Crimping capacity: up to 400 mm² copper lugs
- 180° rotating head & fiberglass handles
- Overload protection, rapid/slow motion conversion
- Handles larger connectors
- Powerful output
- Certified quality & product warranty included

HH400 - Maximum force in Tight Spaces

- Length: 559 mm | Weight: 5.8 kg
- Maximum output: 15.82 tons (140.7 kN)
- Crimping: terminals up to 325 mm² with dies
- 180° rotating head & single-stage pumping
- Compact slim design
- Ideal for confined spaces
- Rapid ram advance for efficiency
- Certified quality & product warranty included

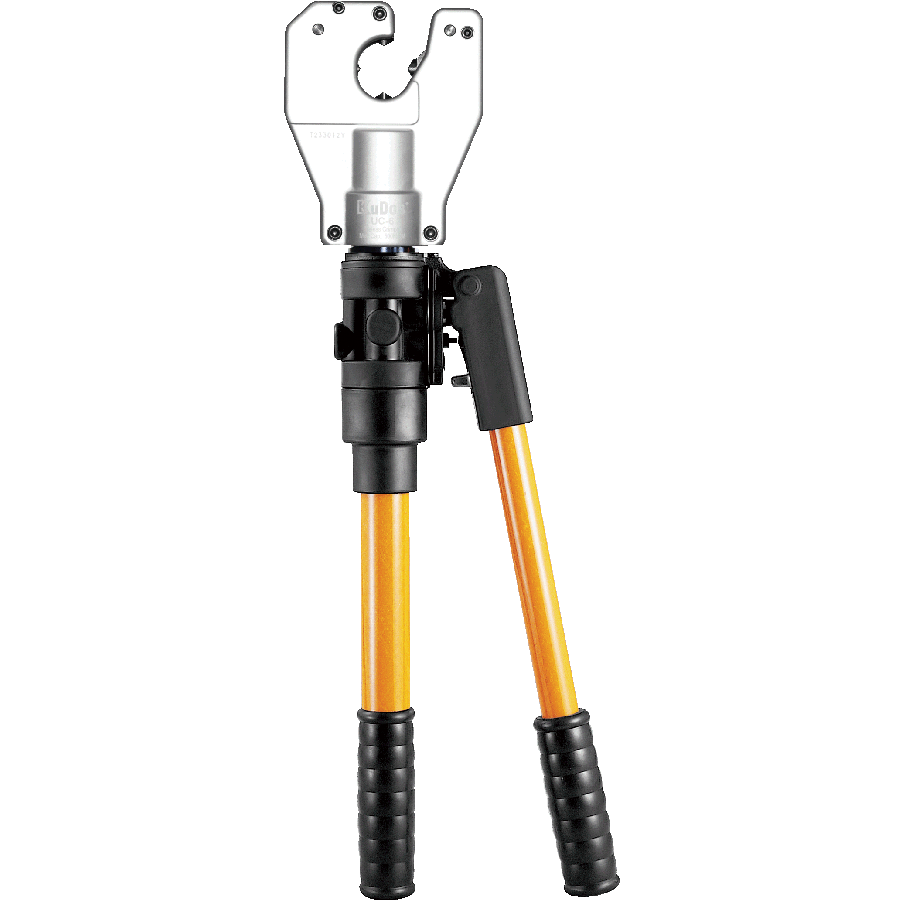

UC-6 - Dieless, Fast, Reliable, Anywhere

- Length: 627 mm | Weight: 6.0 kg
- Maximum output: 7.03 tons (62.5 kN)
- Jaw opening: 29-35 mm
- Crimping: connectors up to 32 mm OD/500 MCM
- 360° rotating head & dieless compression
- Overload protection & 2-stage hydraulic system
- Versatile for Anderson connectors
- Portable for field use & applications
- Certified quality & product warranty included

 UC-6FT - Extended Reach, Crimp Larger

- Length: 648 mm | Weight: 6.4 kg
- Maximum output: 7.03 tons (62.5 kN)
- Jaw opening: 32-38 mm
- Crimping: connectors up to 36 mm OD/750 MCM
- 360° rotating head & dieless compression
- Overload protection | Portable & versatile
- Extended capacity for larger Anderson connectors
- Efficient for heavy-duty applications
- Certified quality & product warranty included

Hydraulic Crimping Tool
"Engineered for Strength, Designed for Precision"

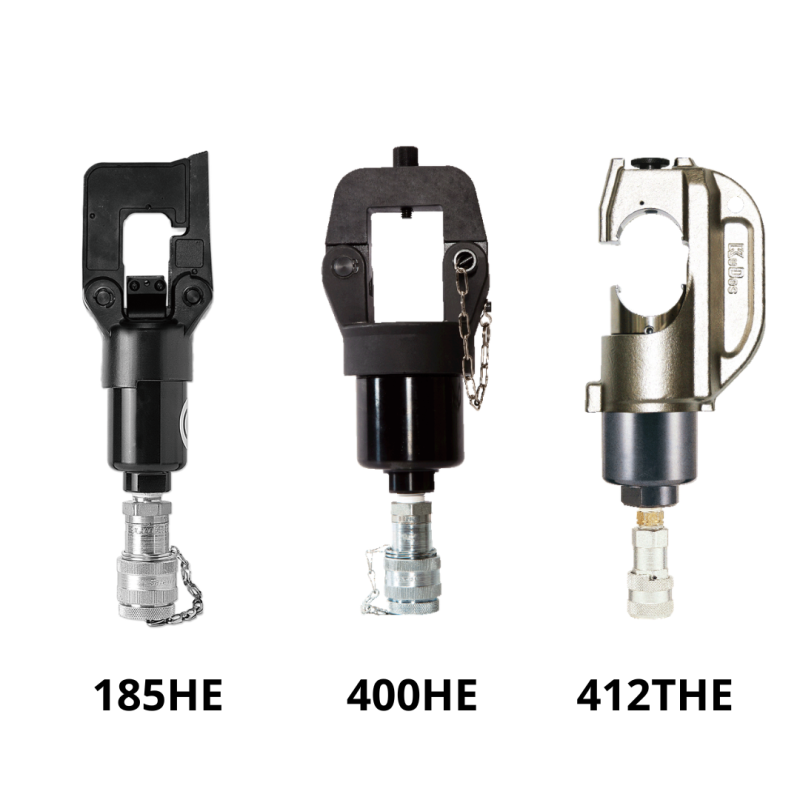

HYCP185HE - Pure Precision

- Crimping capacity: up to 185 mm² (DIN 46235 std.)
- Hydraulic output: approximately 12 tons
- Two-stage hydraulic system
- Ergonomic handles, interchangeable dies
- Reliable crimps for medium-sized connectors
- Portable, efficient, pumping action
- Certified quality & product warranty included

HYCP240HE - Power Meets Capacity

- Crimping capacity: up to 240 mm² (DIN 46235 std.)
- Hydraulic output: approximately 14 tons
- Larger jaw opening for bigger connectors
- Overload protection | Rotating head
- Durable fiberglass handles
- Handles heavy-duty connectors
- Strong output, safe, and efficient operation
- Certified quality & product warranty included

PH300HE - Compact Force & Confidence

- Crimping capacity: up to 300 mm²
- Hydraulic output: approximately 15 tons
- Compact body with high force output
- Single-stage hydraulic system
- Slim profile | Rotating head
- Ideal for confined spaces
- Quick crimping cycles
- Certified quality & product warranty included

UB412HE - Compact Force & Confidence

- Crimping capacity: up to 400 mm²
- Hydraulic output: approximately 12-13 tons
- Two-stage hydraulic | Overload relief valve
- 180° rotating head | Balanced design
- Slim profile | Rotating head
- Versatile die compatibility | Efficient pumping
- Certified quality & product warranty included

UB400HE - Heavy Duty, High Precision

- Crimping capacity: up to 400 mm²
- Hydraulic output: approximately 14 tons
- Larger jaw opening for heavy connectors
- Rapid/slow motion conversion
- Oveload protection | fiberglass handles
- Heavy-duty performance
- Efficient operation | Safe under load
- Certified quality & product warranty included

HH400HE - Powerful, Compact Muscle

- Crimping capacity: terminals up to 325 mm²
- Hydraulic output: approximately 15-16 tons
- Slim design | single-stage pumping
- 180° rotating head | Lightweight yet powerful
- Perfect for tight spaces | Rapid ram advance
- Certified quality & product warranty included

Hydraulic Crimping Tool (Separate Pump)

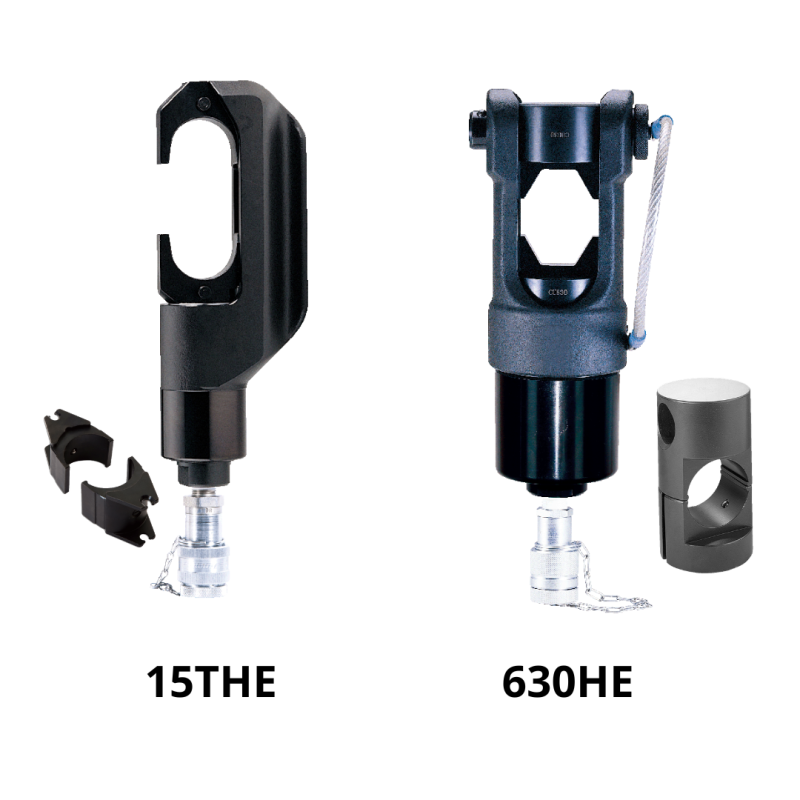

HYCP15THE - Open Access, Strong Results
- Force Output: 15.57 tons (138.5 kN)
- Max Pressure: 700 bar (10,000 psi)
- Jaw Opening: 50.6 mm (45 mm w/ adapter ADP-15THE)
- Crimping Capacity: Up to 630 mm²
- Weight: 6.8 kg | Length: 375 mm
- Compact and ergonomic design for field use
- Reliable spring-return mechanism for efficiency
- Strong, consistent crimps for large conductors
- Durable build for long service life
- Versatile die compatibility, no need for multiple tools
- Certified quality & product warranty included

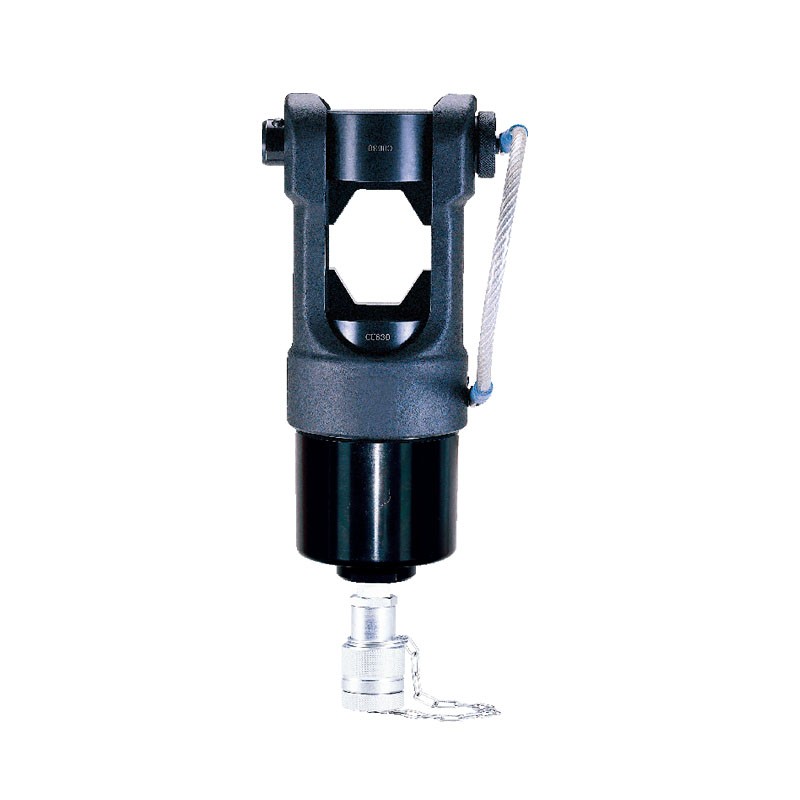

HYCP630HE - Lock in Strength, Crimp with Confidence.
- Force Output: 22.5 tons (221 kN)
- Max Pressure: 700 bar (10,000 psi)
- Crimping Capacity: 400–630 mm² terminals
- Compatibility: 16–400 mm² dies w/ ADP-630HE adapter
- Weight: 5.6 kg | Height: 320 mm
- U-type head with lock pin for secure die holding
- Hexagonal crimping for large terminals
- Single-action cylinder with automatic spring return
- Operates with any 700 bar hydraulic pump
- Adapter allows use of 12-ton tool dies
- Lightweight yet powerful design
- Certified quality & product warranty included

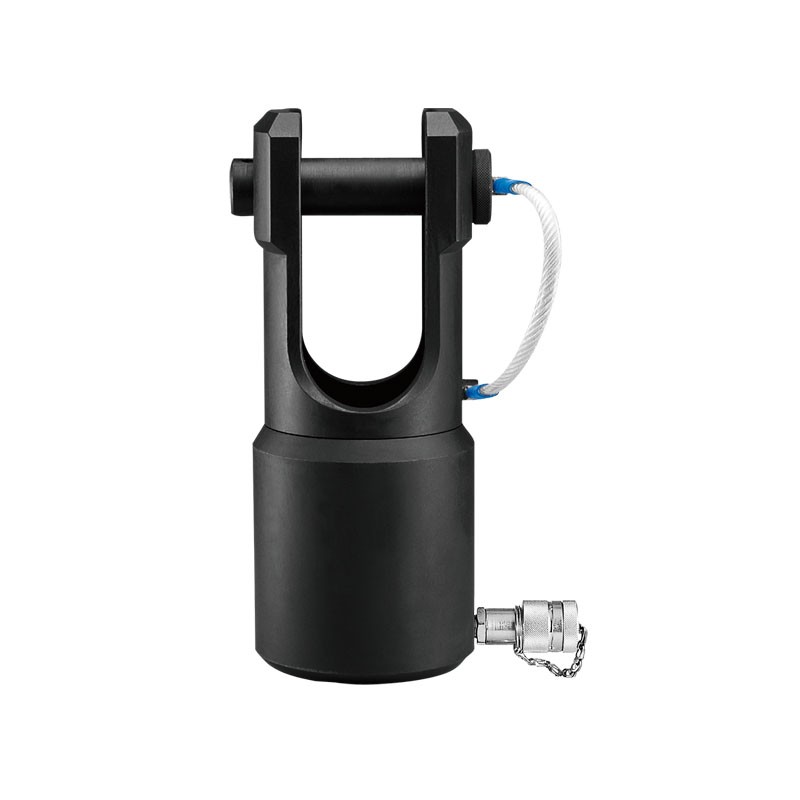

Heavy Duty Hydraulic Crimping Tool (Separate Pump)

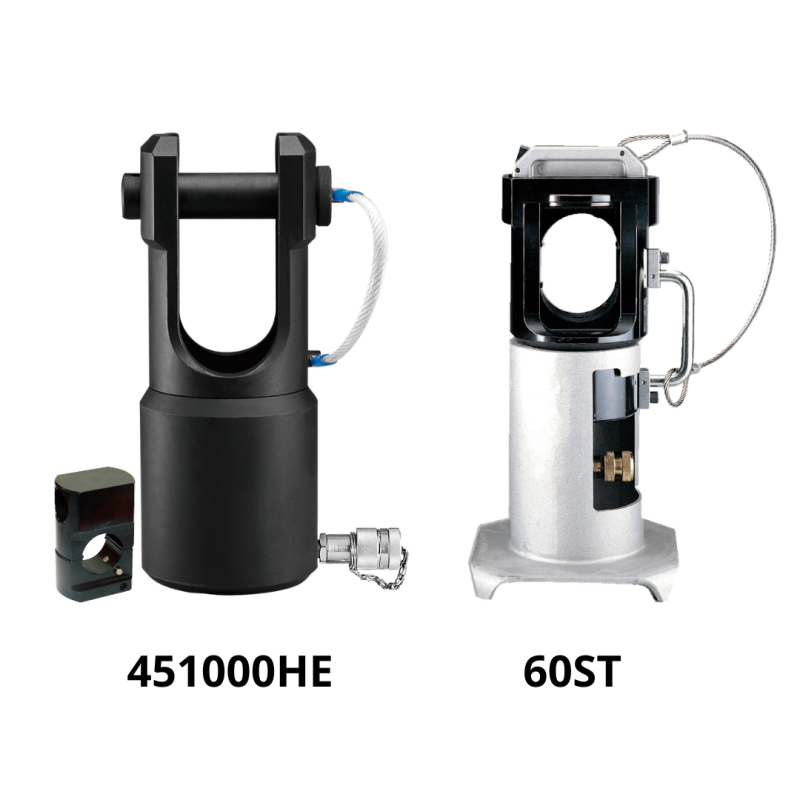

HYCP451000HE - Maximum Force, Maximum Reliability
- Force Output: ~45 tons (approx. 450 kN)
- Max Pressure: 700 bar (10,000 psi)
- Crimping Capacity: Up to 1000 mm² terminals
- Design: Heavy-duty build for industrial applications
- Precision hexagonal crimping for large terminals
- Single-action hydraulic cylinder with spring return
- Compatible with 700 bar hydraulic pumps
- Secure die holding system for high performance
- Reliable compression for extra-large conductors
- Rugged design ensures durability in tough settings
- Reduces tool changeovers with wide crimping capacity
- Long service life under heavy-duty use
- Certified quality & product warranty included

HYCP60ST - Strength Meets Versatility
- Force Output: ~60 tons (approx. 600 kN)
- Max Pressure: 700 bar (10,000 psi)
- Crimping: Up to 1000 mm² terminals (depending on die set)
- Balanced build for portability and strength
- Hydraulic crimping tool for mid-to-large terminals
- Compact for versatile field and workshop use
- Single-action cylinder with automatic spring return
- Compatible with 700 bar hydraulic pumps
- Secure die system for precise crimping
- High crimping force for large electrical installations
- Strong, dependable crimps for large conductors
- Durable construction ensures long-term reliability
- Certified quality & product warranty included

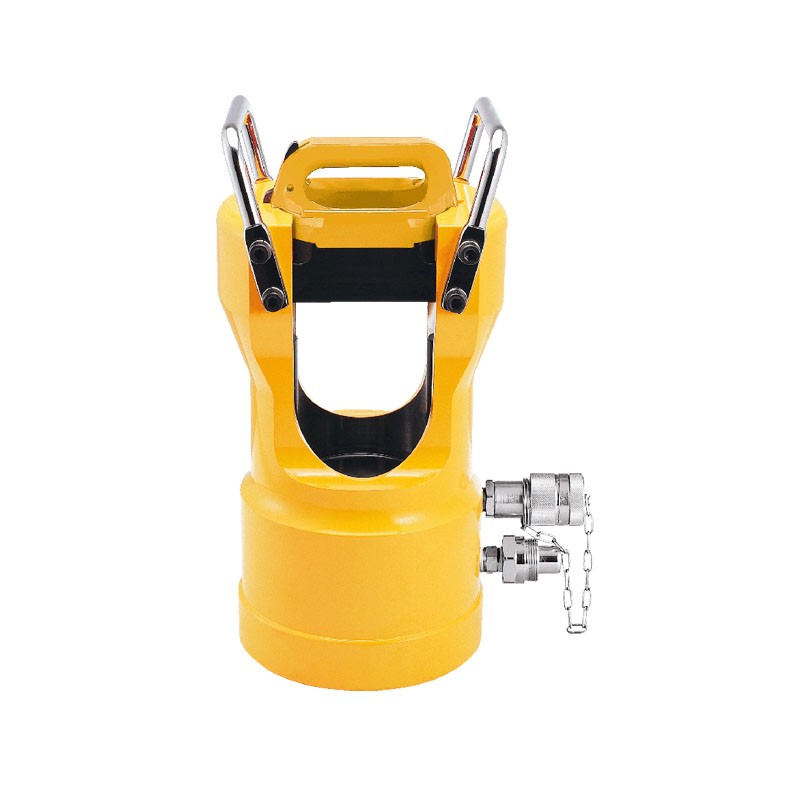

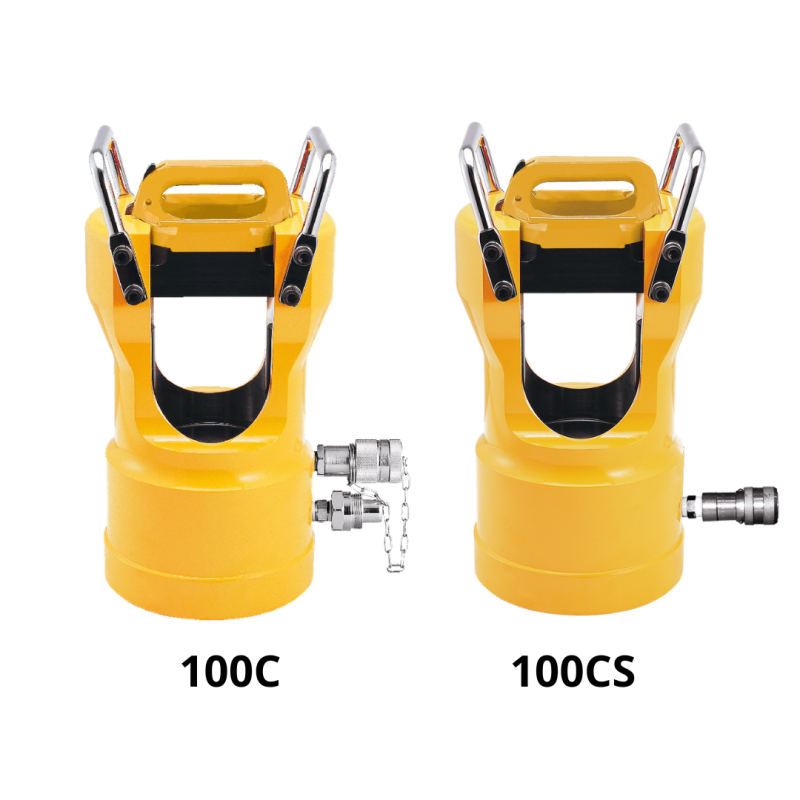

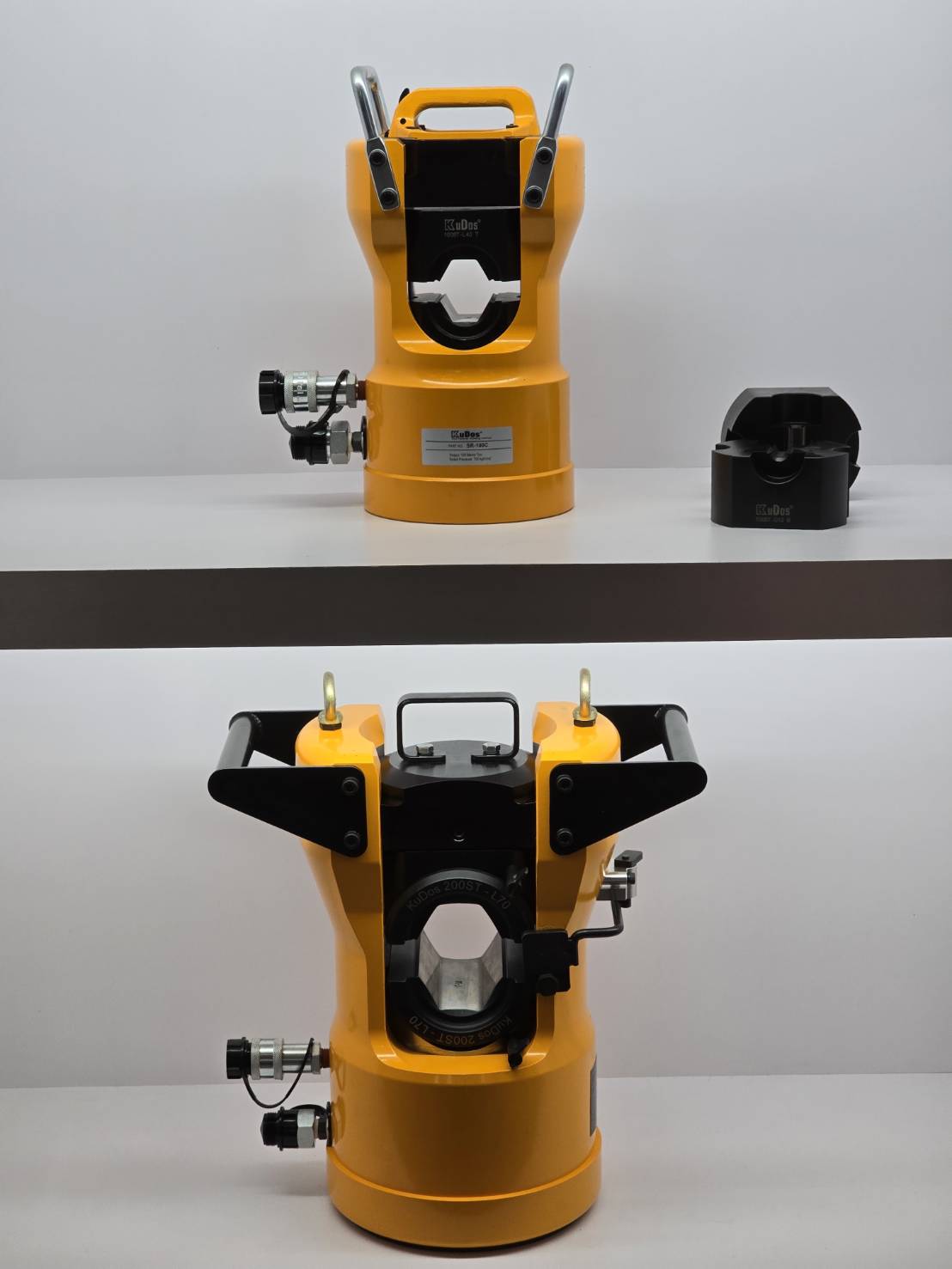

Hydraulic Crimper Head (Separate Pump)
HYCP100ST–100W: ~100 tons
HYCP100ST–200W: ~200 tons
HYCP100ST–SR300C: ~300 tons

HYCP100ST Series - Heavy Duty, Precision in Every Crimp
- Force: ~100-300 tons (depending on models)
- Max Pressure: 700 bar (10,000 psi)
- Crimping Capacity: Up to 1000 mm² terminals
- Heavy-duty crimper head for workshop use
- Precision hexagonal crimping for large terminals
- Single-action hydraulic cylinder with spring return
- Compatible with 700 bar hydraulic pumps
- High force output for demanding crimping tasks
- Wide crimping capacity, no need for multiple tools
- Strong, consistent crimps for critical connections
- Long service life under heavy-duty use
- Improves efficiency in industrial-scale projects
- Certified quality & product warranty included

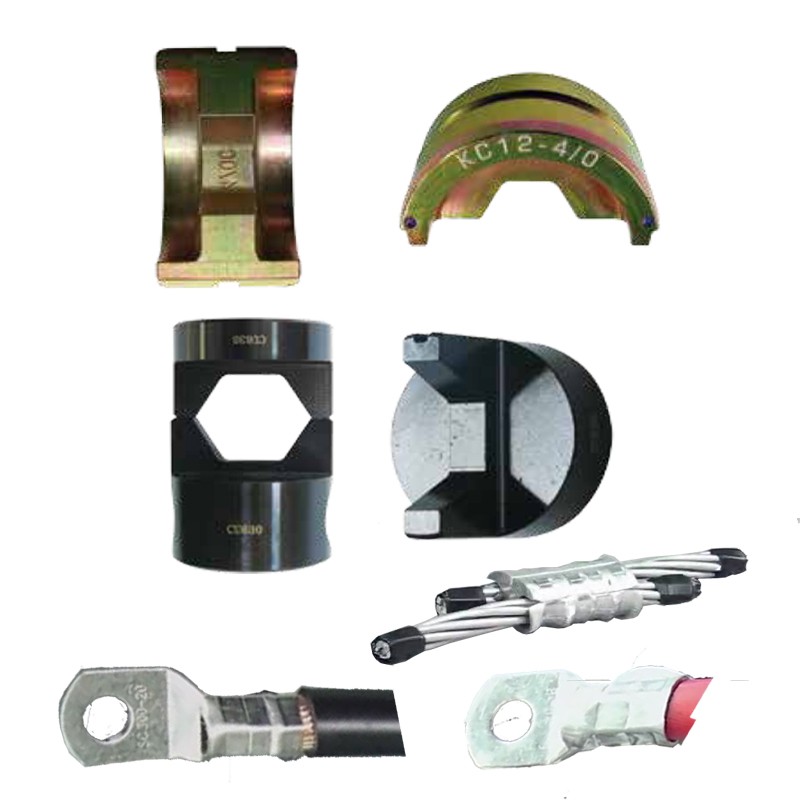

Crimping Accessories - Standard-Compliant Precision

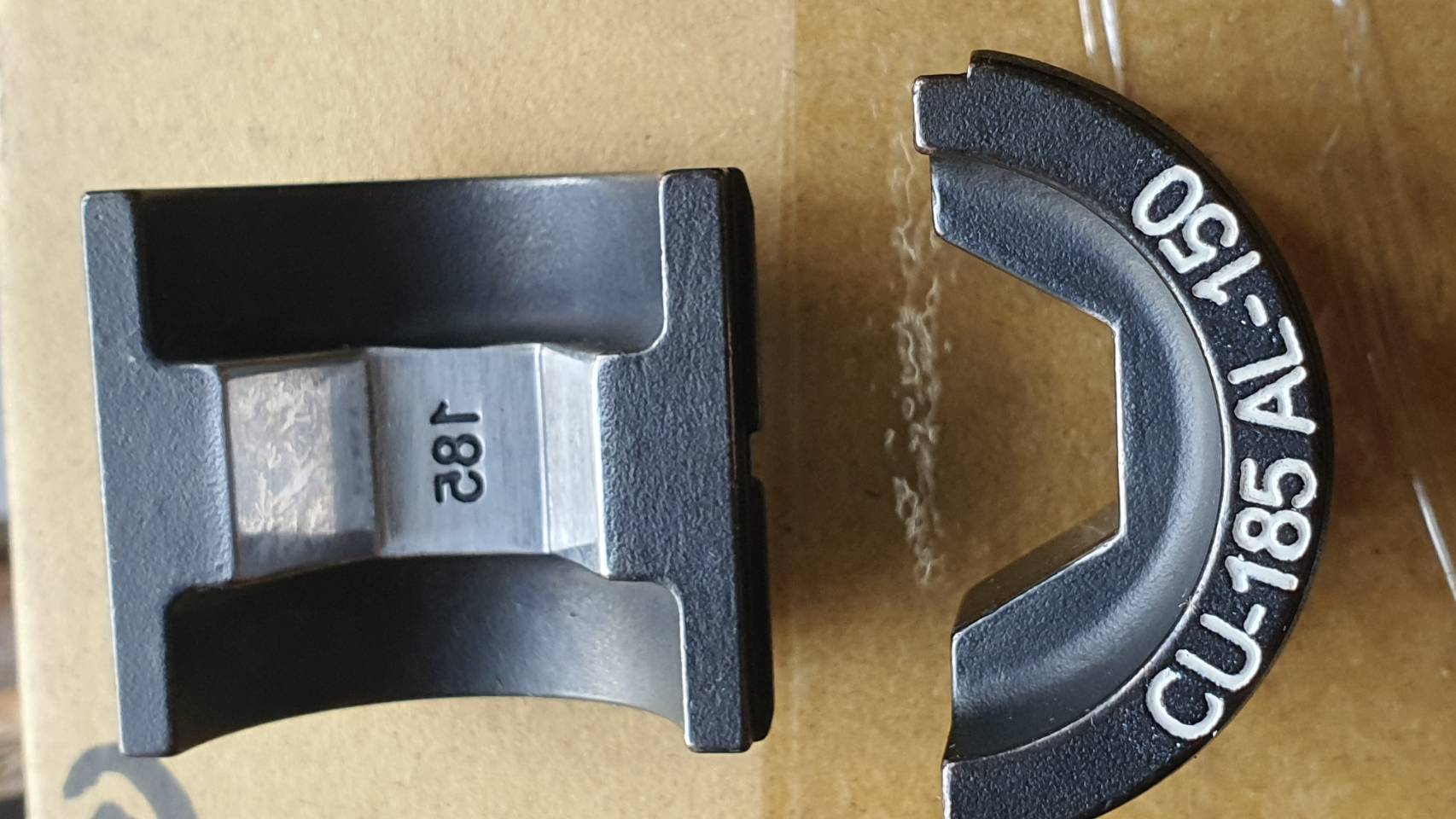

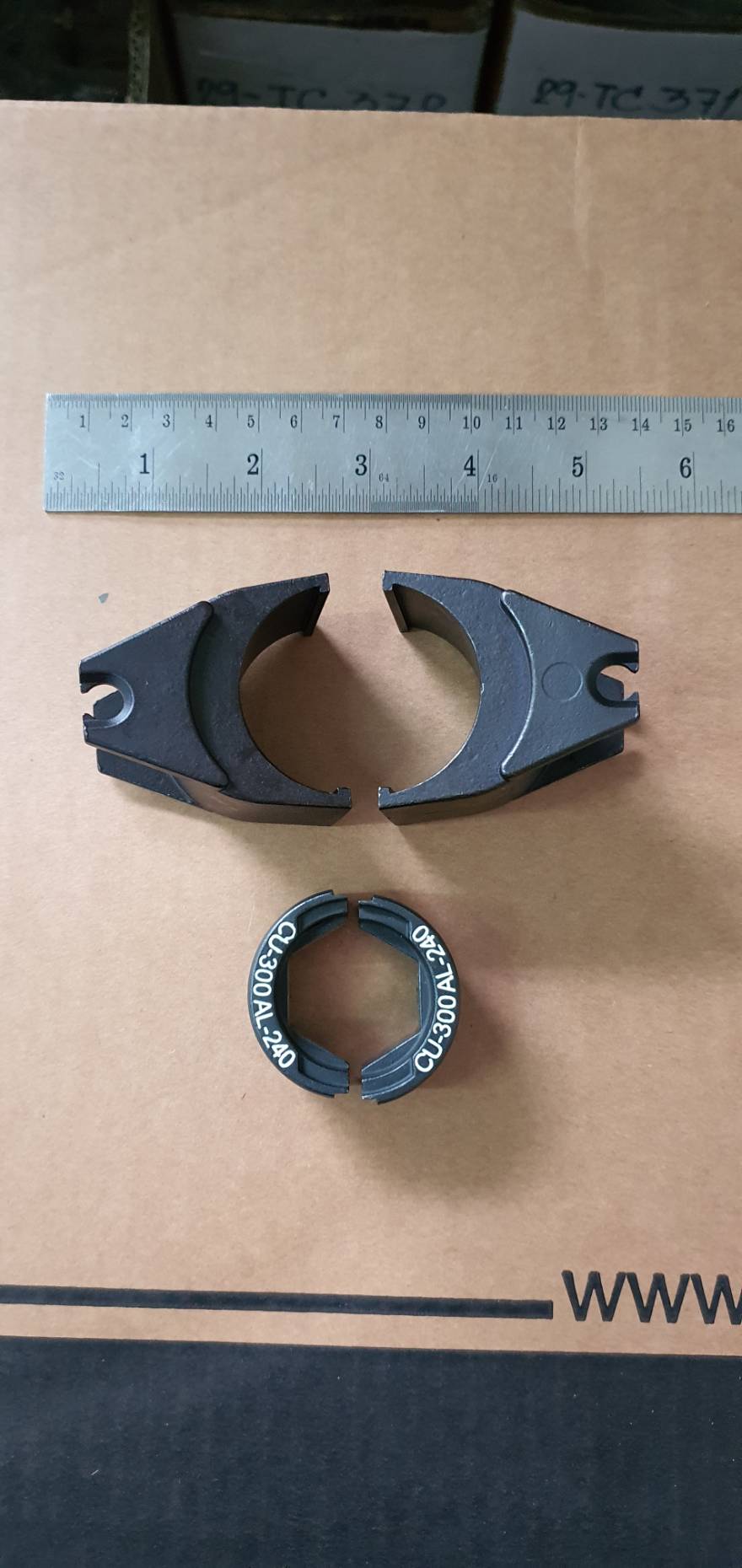

Hexagon Dies for Copper Lugs (DIN 46235 Cable Lugs)
- Standard: DIN 46235
- Crimping Type: Hexagonal
- Application: Copper cable lugs
- Precision-machined hexagonal dies
- Designed for DIN 46235 copper lugs
- Ensures compliance with international standards
- Compatible with KUDOS hydraulic crimping tools
- High accuracy for copper lug compression
- Long-lasting die durability
- Reduces risk of faulty crimps
- Enhances safety and reliability in installations

Dies for Solderless Terminal (NFC 20.130 Standard)
- Standard: NFC 20.130
- Crimping Type: Hexagonal
- Application: Solderless terminals
- Sizes: Range to match NFC-approved conductors
- Hexagonal die design for solderless terminals
- Compatible with KUDOS hydraulic crimping tools
- Precision machining for consistent results
- Ensures compliance with NFC standards
- Provides strong crimps without soldering
- Durable construction for repeated use
- Improves efficiency and safety in electrical work

Hexagon Dies for JIS C2804 Terminals
- Standard: JIS C2804
- Crimping Type: Hexagonal
- Application: JIS-approved terminals
- Match Japanese Industrial Standard conductors
- Compatible with KUDOS hydraulic crimping tools
- Engineered for accuracy and durability
- Meets Japanese Industrial Standard requirements
- Provides consistent, high-quality crimps
- Robust design for long-term use
- Enhances reliability of electrical connections
