INDUCTION HEATER / Product / INDUCTION HEATER
INDUCTION HEATER

BETEX Bearing Induction Heater
* BLF Series (Basic)
* SLF Series (Smart)

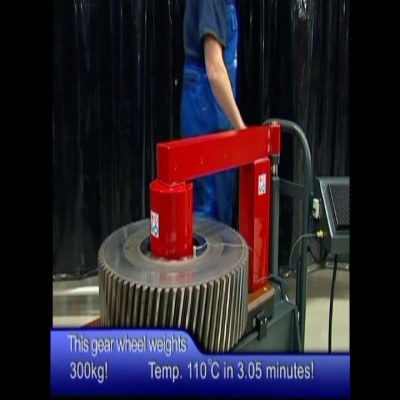

BETEX Bearing Induction Heater
#BLF Series - Digital display, Single temperature
- Low-frequency, no cooling water needed
- Handles bearing from 20 to 200 kg
- Temperature setting up to 240°C
- Single magnetic sensor measurement
- Pendulum function maintains preset temperature
- Automatic demagnetization < 2A/cm
- Digital display with push-button control
- Robust benchtop model with swing arm
- Ideal for workshops or on-site use
- Environmentally friendly
- 2-year warranty on electronic unit

#SLF Series - Touchscreen, Dual temperature
- Low-frequency, no cooling water needed
- Controlled induction heating
- Delta-T dual temperature measurement
- Touch screen with graph display
- Log function with USB export
- Automatic demagnetization
- Pendulum function maintains preset temperature
- Robust design for industrial environments
- Environmentally friendly
- 2-year warranty on electronic unit



MODEL

(Basic)          (Smart)

Max.
O.D.
(mm)

Max.
bearing
weight
(kg)

BLF200

---

240

20

BLF201

SLF 301
(Delta T)
400

50

BLF202

SLF 302
(Delta T)

500

100

BLF203

SLF 303
(Delta T)

600

150

BLF204

SLF 304
(Delta T)

600

200

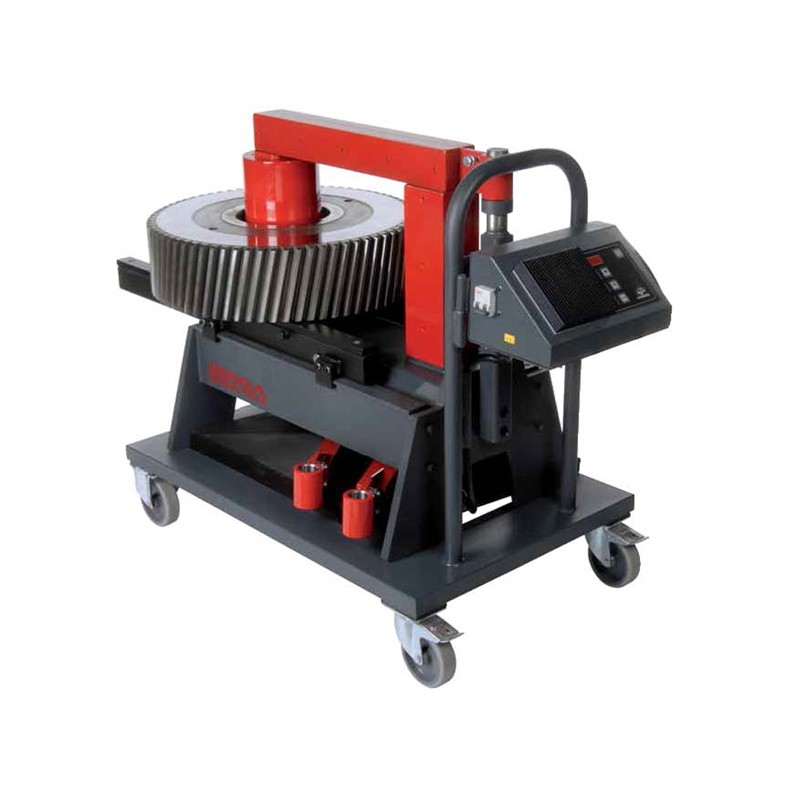

Heavy Duty Bearing Induction Heater
* BLF Series (Basic)
* SLF Series (Smart)

Heavy Duty Bearing Induction Heater
#BLF Series - Digital display, Single temperature
- Low-frequency, no cooling water needed
- Handles bearing from 400 to 1600 kg
- Temperature setting up to 240°C
- Single magnetic sensor measurement
- Pendulum function maintains preset temperature
- Automatic demagnetization < 2A/cm
- Digital display with push-button control
- Robust benchtop model with swing arm
- Ideal for on-site use
- Environmentally friendly
- 2-year warranty on electronic unit

SLF Series -Touchscreen, Dual temperature
- Low-frequency, no cooling water needed
- Controlled induction heating
- Delta-T dual temperature measurement
- Touch screen with graph display
- Log function with USB export
- Automatic demagnetization
- Pendulum function maintains preset temperature
- Robust design for industrial environments
- Environmentally friendly
- 2-year warranty on electronic unit


MODEL

(Basic)          (Smart)

Max.
O.D.
(mm)

Max.
bearing
weight
(kg)

BLF205

SLF305
(Delta-T)

850

400

BLF206

SLF 306
(Delta T)
1050

600

BLF207

SLF 307
(Delta T)

1150

800

BLF208

SLF 308
(Delta T)

1700

 1600




Specifications

BETEX Bearing Fitting Tools
(Product of Holland)
* IMPACT 33
* IMPACT 39

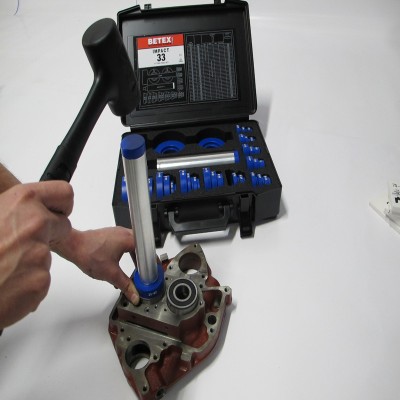

BETEX Bearing Fitting Tools (ชุดตอกลูกปืน)
#IMPACT
33 - Compatible with 375 bearing sizes

#IMPACT 39 - Compatible with 600 bearing sizes

- Quick, precise, safe mouting
- No damage to shafts, housings, or seals
- Extended bearing life cycle
- Impact-resistant collets, unbreakable sheet material
- Clearly engraved collet numbers, error-free use


IMPACT 33 consists of:
- 33 rings
- 3 impact sleeves (aluminum)
- Dead-blow hammer
- Carrying case
- For bore 10-60 mm and O.D. 26-110 mm
- Compatible with 375 bearing sizes
- Weight: 4.8 kg

IMPACT 39 consists of:
- 39 rings
- 4 impact sleeves (aluminum)
- Dead-blow hammer
- Carrying case
- For bore 10-60 mm and O.D. 26-130 mm
- Compatible with 600 bearing sizes
- Weight: 6.5 kg

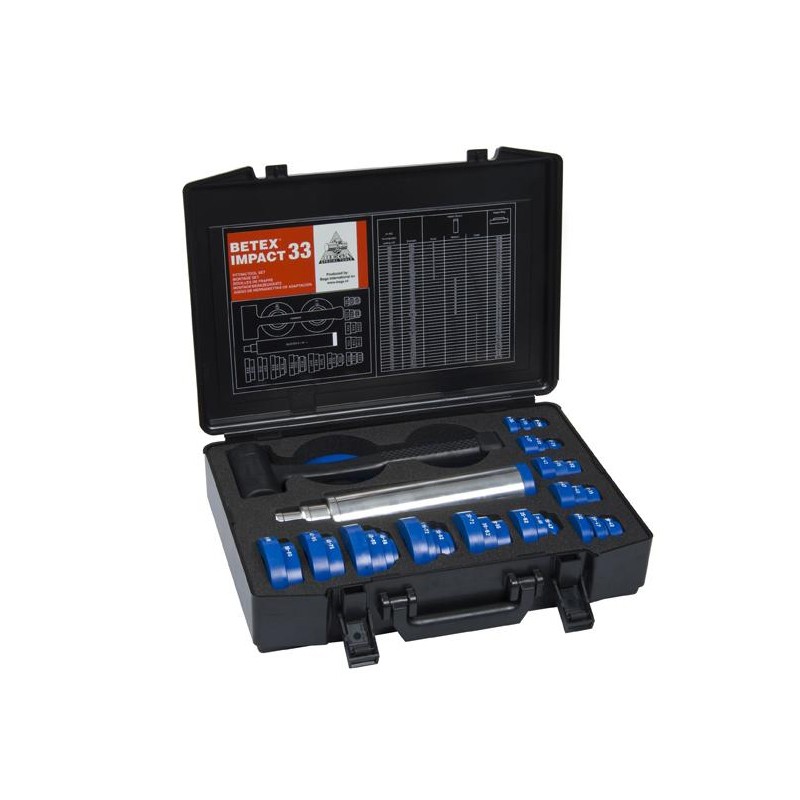

IMPACT 33

  • WITH 3 SLEEVES
  • WITH 33 RINGS
  • COMPATIBLE WITH ± 375 BEARINGS
IMPACT 39
  • WITH 4 SLEEVES
  • WITH 39 RINGS
  • COMPATIBLE WITH ± 600 BEARINGS

Specifications

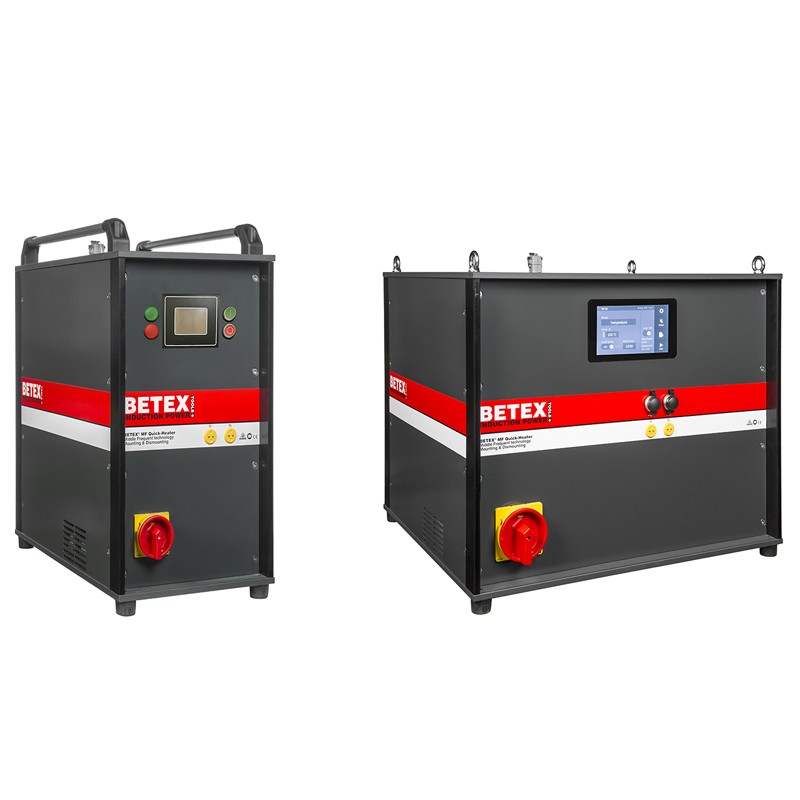

BETEX Medium Frequency Quick Heater
* MF 3.1, 22 kW
* MF 3.1, 44 kW

BETEX Medium Frequency Quick Heater

- 7" touchscreen with automatic inductor recognition
- Smart auto-setting for fast, error-free use
- 5 heating modes: temp, time, speed, sequence, ΔT
- Dual sensors (T1 & T2) prevent thermal stress
- Auto shut-off for misconnection or overheating
- USB logging (CSV/PDF) for traceability
- Optional networking - link up to 10 generators
- Optional signal column for clear status display
- Controlled heating for bearings, rings, couplings
- Precision heating to 300°C (±3.5°C)

- Medium-frequency system, no cooling water
- Safe, versatile heating for inner/outer diameters

- Fast operation for mounting/dismouting, pre-heating
- Made in Holland - engineered reliability
- Product warranty included

MODEL MF 3.1 /22 kW MF 3.1/44 kW
Max.Temp 300°C /572°F 300°C /572°F
Frequency 10-25 kHz 10-25 kHz
Power 22 kW/32A 44 KW/32A
Display 7" Touchscreen 7" Touchscreen
Weight 46 kg. 78 kg.
