NUT SPLITTER

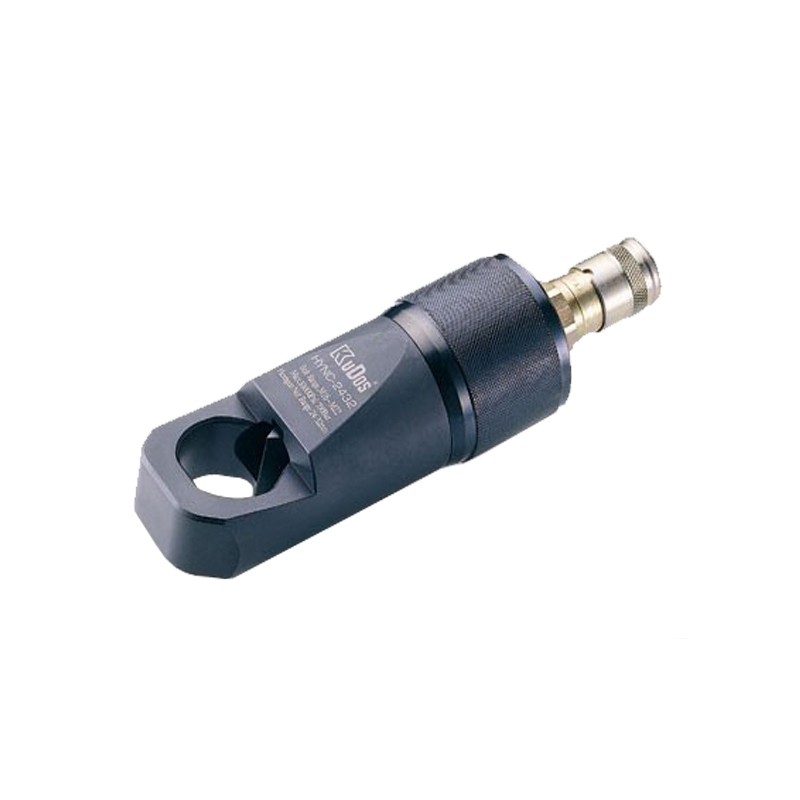

Hydraulic Nut Splitter
* HYNC Series
- 10-75 mm Hex Nut Range

KuDos® Hydraulic Nut Splitter
เครื่องตัดน๊อตไฮดรอลิค

HYNC Series - Split Nuts, Save Time, Protect Bolts
- Capacity: ~6-102 tons depending on model
- Bolt range: M6-M48 across seven models
- Hex nut range: 10-75 mm across flats
- Maximum pressure: 700 bar (10,000 psi)
- Single‑acting cylinder with spring return

- Angled head to access to nuts in confined positions
- Regrindable chisels for extended service life
- Operates with 700 bar single-acting hydraulic pump
- Splits nuts cleanly without damaging bolts
- Multiple models for diverse industrial applications
- Robust construction with replaceable chisels
- Compact design with protective carry cases
- Certified quality, Made in U.S.A.
- Warranty & insurance included

MODEL Bolt range Hex. nut range
(mm)
Capacity
(Ton)
HYNC-1319 M6-M12 10-19 6.23 t
HYNC-1924 M12-M16 19-24 11.24 t
HYNC-2432 M16-M22 24-32 18.39 t
HYNC-3241 M22-M27 32-41 25.69 t
HYNC-4150 M27-M33 41-50 38.92 t
HYNC-5060 M33-M39 50-60 54.88 t
HYNC-6075 M39-M48 60-75 102.76 t
